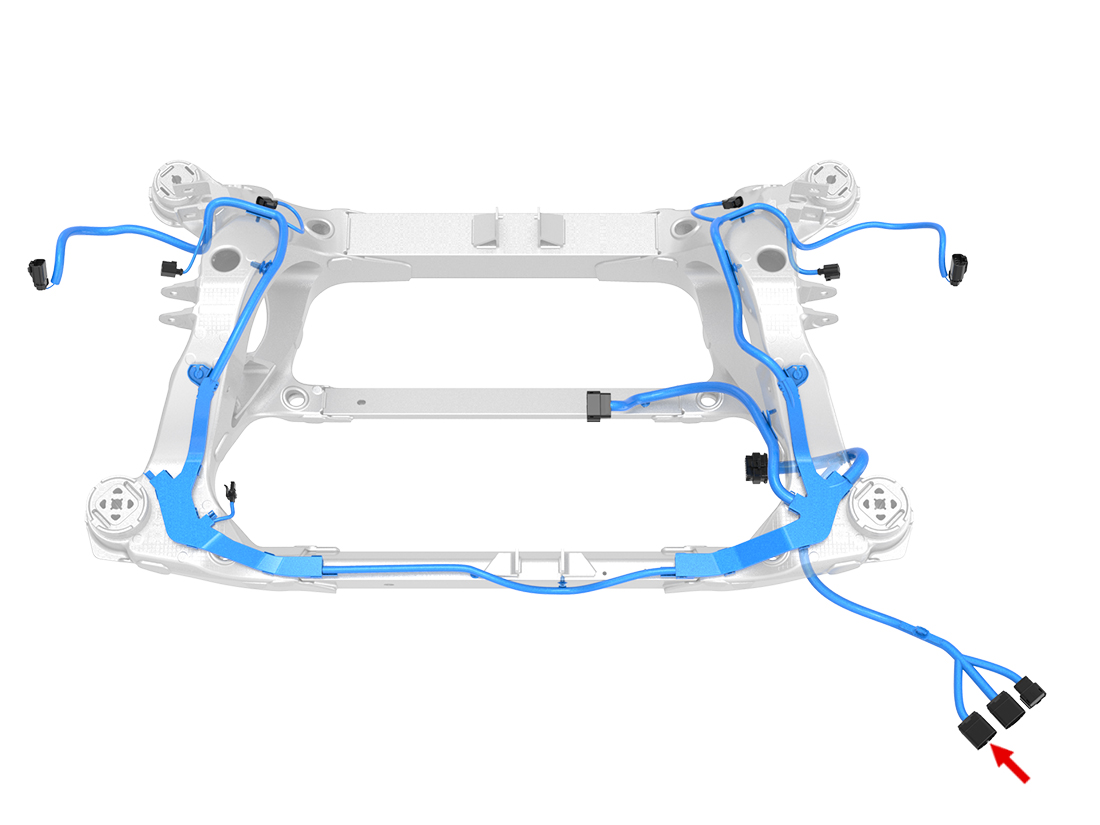

Location:
Connector Detail: FCI 55251400
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | GY | 2 | SN | X103A-1 | 54001625 |
| 2 | WH | 0.75 | SN | X103-2 | 54001625 |
| 3 | |||||
| 4 | |||||
| 5 | |||||
| 6 | BU/WH | 0.75 | SN | X104-2 | 54001625 |
| 7 | RD/WH | 2 | SN | X104A-1 | 54001625 |
| 8 | BK/WH | 2 | SN | X103-1 | 54001625 |
| 9 | OG | 0.75 | SN | X103-3 | 54001625 |
| 10 | |||||
| 11 | |||||
| 12 | |||||
| 13 | VT/WH | 0.75 | SN | X104-3 | 54001625 |
| 14 | RD/VT | 2 | SN | X104-1 | 54001625 |
