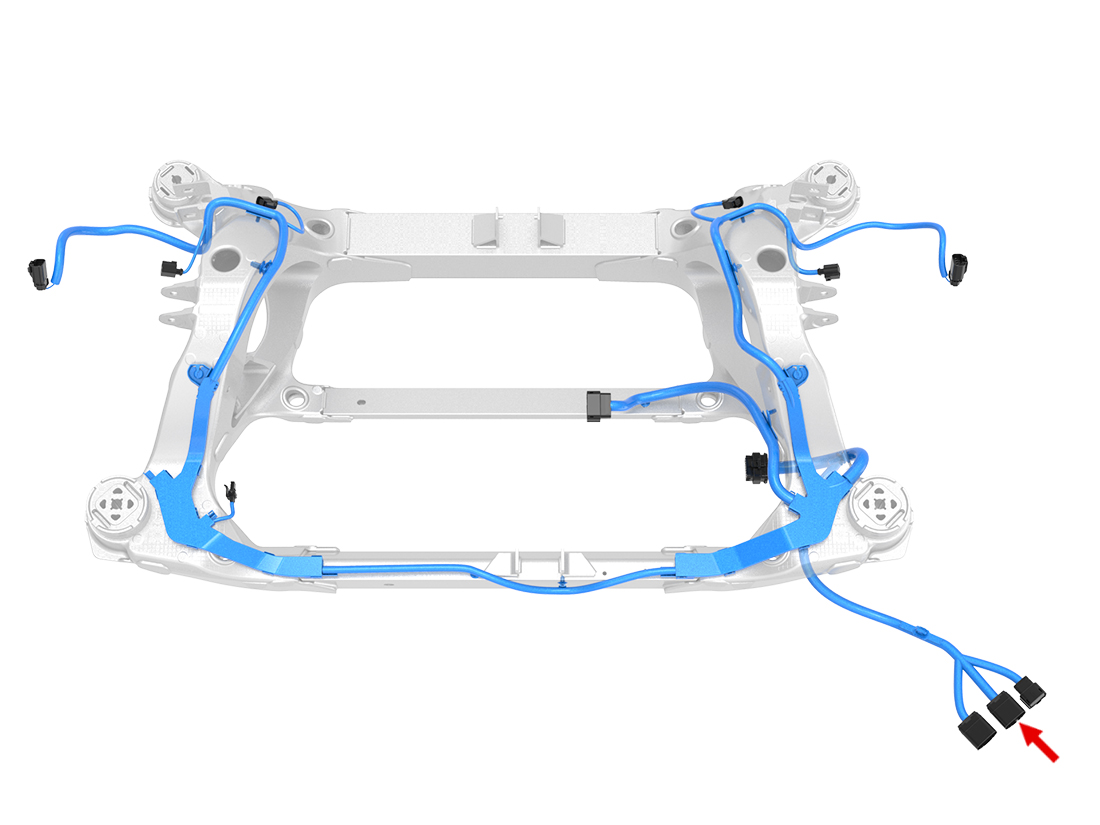

Location:

Connector Detail: FCI 55251403

Color: GN

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/BK	0.75	SN	X250-1	54002000
2	OG	0.5	SN	X251-5	54002000
3	GY	0.5	SN	X251-4	54002000
4	GN	0.75	SN	X250-15	54002000
5	RD/YE	0.5	SN	X251-3	54002000
6	YE	0.5	SN	X251-11	54002000
7	BK	0.75	SN	X250-11	54002000
8	RD/BU	0.75	SN	X250-23	54002000
9	BU/WH	0.5	SN	X251-14	54002000
10	BU	0.75	SN	X250-14	54002000
11	BK/VT	0.75	SN	X250-22	54002000
12	GN/WH	0.75	SN	X250-3	54002000
13	WH	0.75	SN	X250-2	54002000
14	VT/WH	0.75	SN	X250-6	54002000
