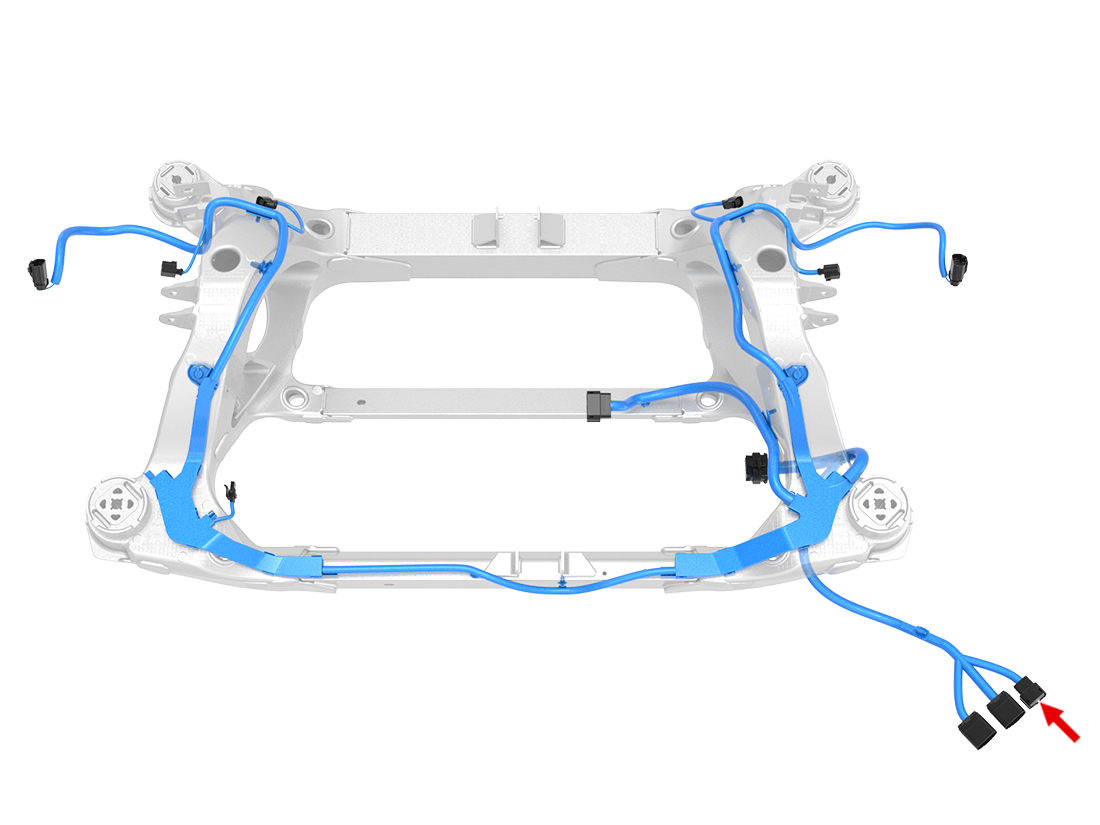

Location:
Connector Detail: MOLEX 33472-1253
Color: DKGY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD/GN | 0.5 | SN | X184-3 | 33012-3003 |
| 2 | VT | 0.5 | SN | X184-2 | 33012-3003 |
| 3 | BK | 0.5 | SN | X184-1 | 33012-3003 |
| 4 | RD/WH | 0.75 | SN | X250-4 | 33012-3003 |
| 5 | GN/WH | 0.5 | SN | X113-1 | 33012-3003 |
| 6 | GN | 0.5 | SN | X113-2 | 33012-3003 |
| 7 | RD/VT | 0.5 | SN | X185-3 | 33012-3003 |
| 8 | BN | 0.5 | SN | X185-2 | 33012-3003 |
| 9 | GY/WH | 0.5 | SN | X185-1 | 33012-3003 |
| 10 | RD | 0.5 | SN | X251-1 | 33012-3003 |
| 11 | BK/WH | 0.5 | SN | X114-1 | 33012-3003 |
| 12 | WH | 0.5 | SN | X114-2 | 33012-3003 |
