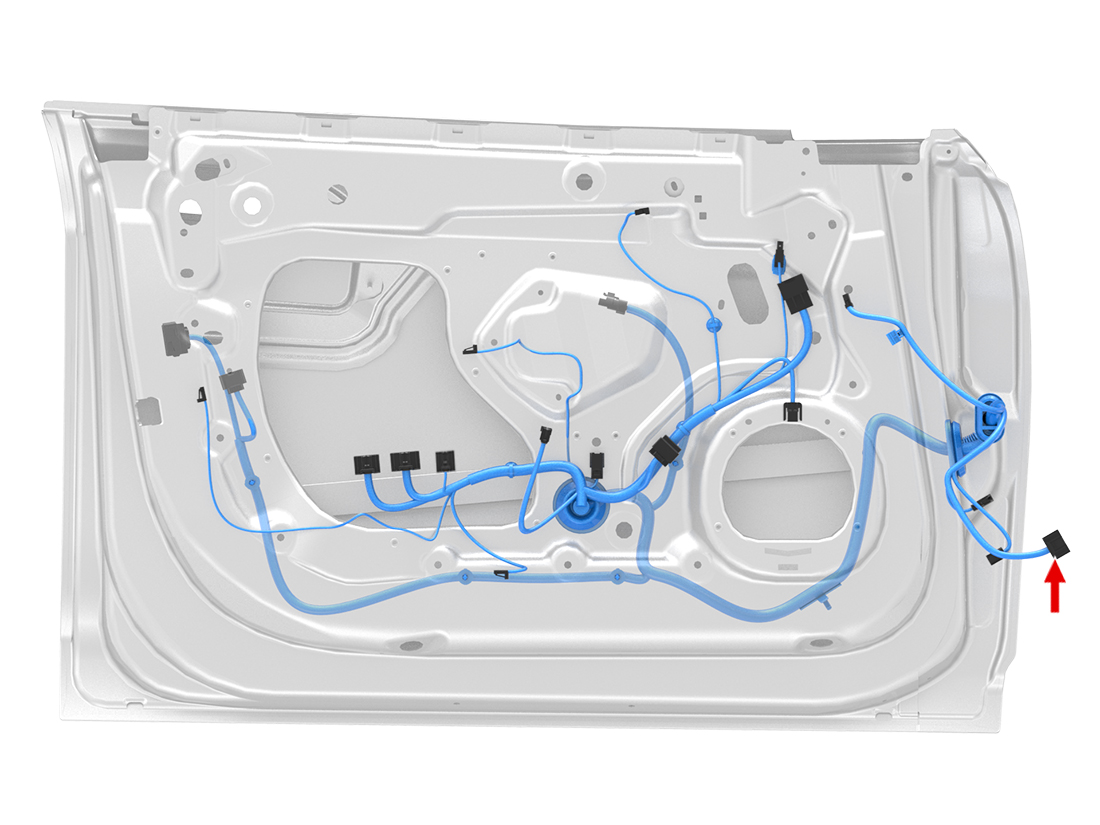

Location:

Connector Detail: SUMITOMO 6098-5609

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GY	1.5	SN	X315-3	8240-0215
2	RD	0.5	SN		8240-0215
3	YE/WH	0.35	SN	X303-1	8240-0215
4	WH	0.35	SN		8240-0215
5	OG/BK	0.5	SN	X204-1	8240-0215
6	BN/WH	0.35	SN	X302-16	8240-0215
7	RD	0.35	SN	X301-2	8240-0215
8	OG	0.35	SN	X316-6	8240-0215
9	WH	0.35	SN	X301-14	8240-0215
10	BU/WH	1.5	SN	X418-1	8240-0215
11	BK	2	SN		8240-0215
12
13	BK	0.35	SN	X302-22	8240-0215
14	GY/WH	0.5	SN	X204-2	8240-0215
15	BN	0.35	SN	X302-15	8240-0215
16	GN	0.35	SN	X316-16	8240-0215
17	OG	0.35	SN		8240-0215
18	BU	1.5	SN	X418-2	8240-0215
