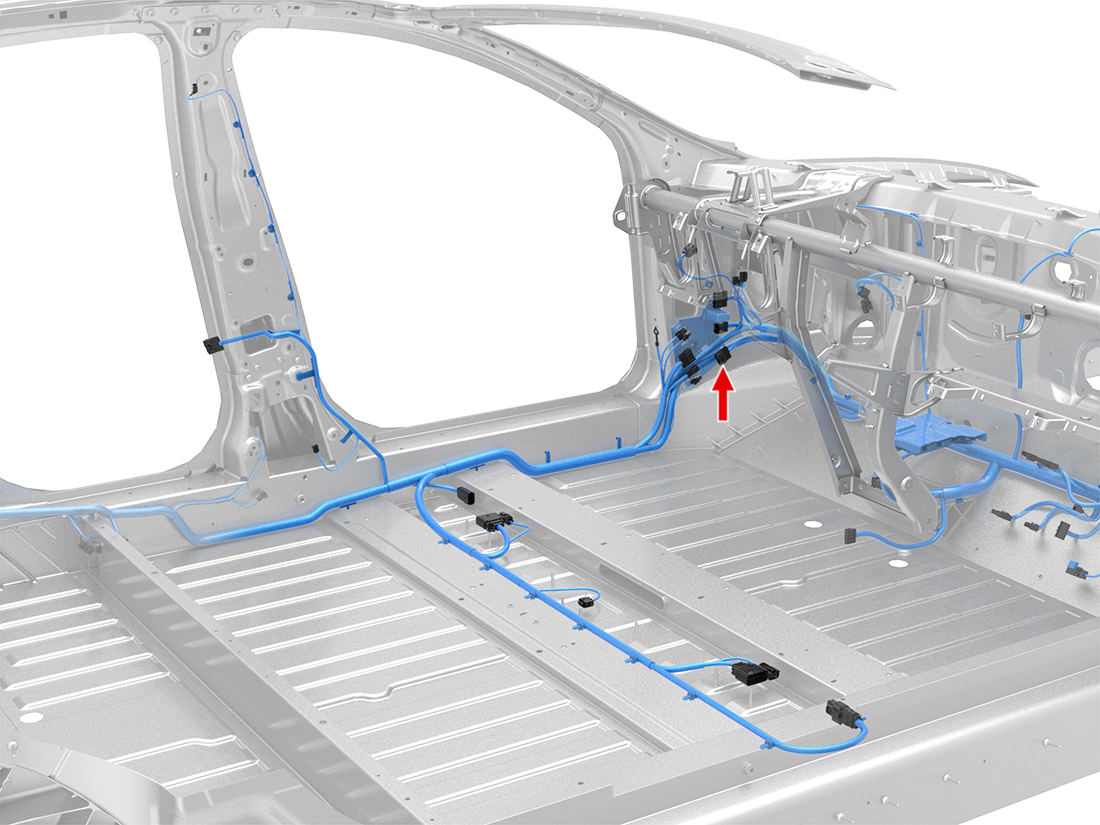

Location:

Connector Detail: SUMITOMO 6098-5600

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GY	1.5	SN	X577-6	8230-4925
2	RD	0.5	SN	X577-2	8230-4925
3	YE/WH	0.35	SN		8230-4925
4	WH	0.35	SN	X945M-4	8230-4925
5	OG/BK	0.5	SN	X201-2	8230-4925
6	BN/WH	0.35	SN	X775-5	8230-4925
7	RD	0.35	SN	X955M-18	8230-4925
8	OG	0.35	SN		8230-4925
9	WH	0.35	SN	X024-12	8230-4925
10	BU/WH	1.5	SN	X947M-7	8230-4925
11	BK	2	SN	G660-1	8230-4925
12
13
14	GY/WH	0.5	SN	X201-12	8230-4925
15	BN	0.35	SN	X775-16	8230-4925
16	GN	0.35	SN		8230-4925
17	OG	0.35	SN	X025-5	8230-4925
18	BU	1.5	SN	X947M-13	8230-4925
