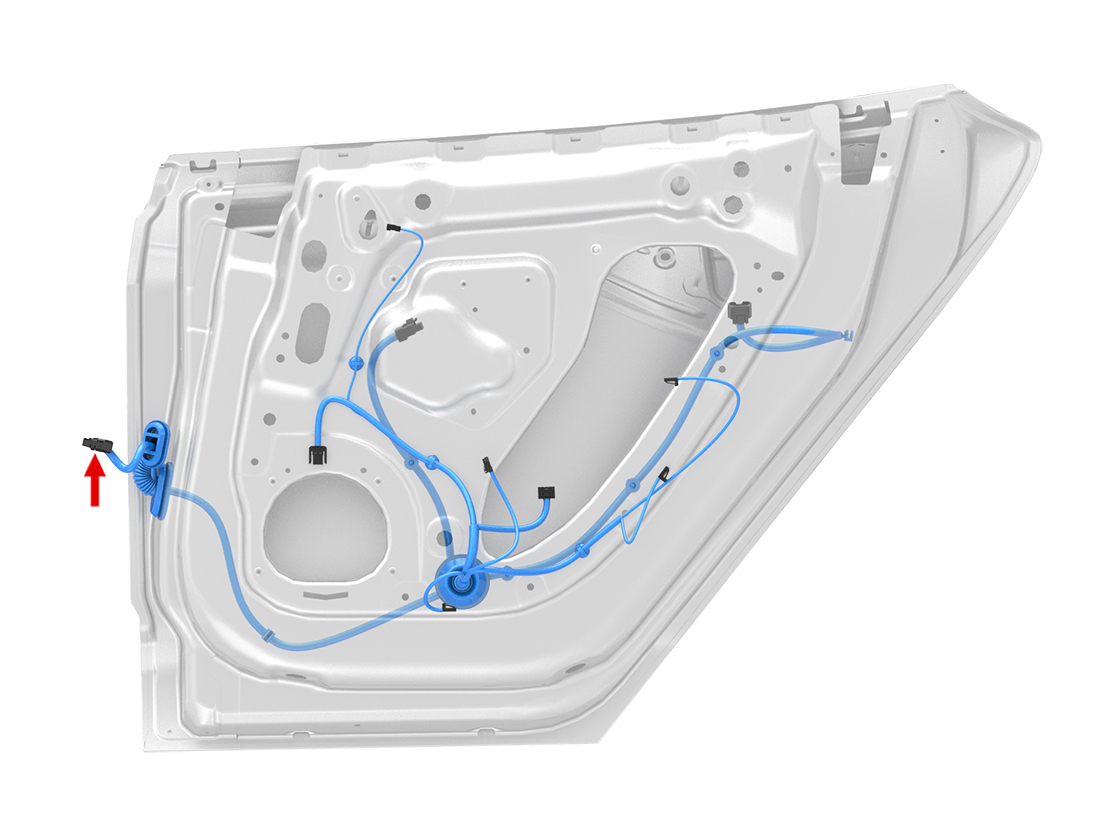

Location:

Connector Detail: SUMITOMO 6098-5609

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/GN	1.5	SN	X377-3	8240-0215
2	BU	0.35	SN	X369-11	8240-0215
3
4	WH	0.35	SN	X340-10	8240-0215
5
6
7	RD/BU	0.35	SN	X369-4	8240-0215
8	RD/WH	0.35	SN	X371-1	8240-0215
9	VT	0.35	SN	X375-1	8240-0215
10	RD	1.5	SN	X412-1	8240-0215
11	BK	2	SN		8240-0215
12	GN/WH	0.35	SN		8240-0215
13
14
15
16	GY	0.35	SN	X376-3	8240-0215
17	YE	0.5	SN	X377-2	8240-0215
18	RD/BK	1.5	SN	X412-2	8240-0215
