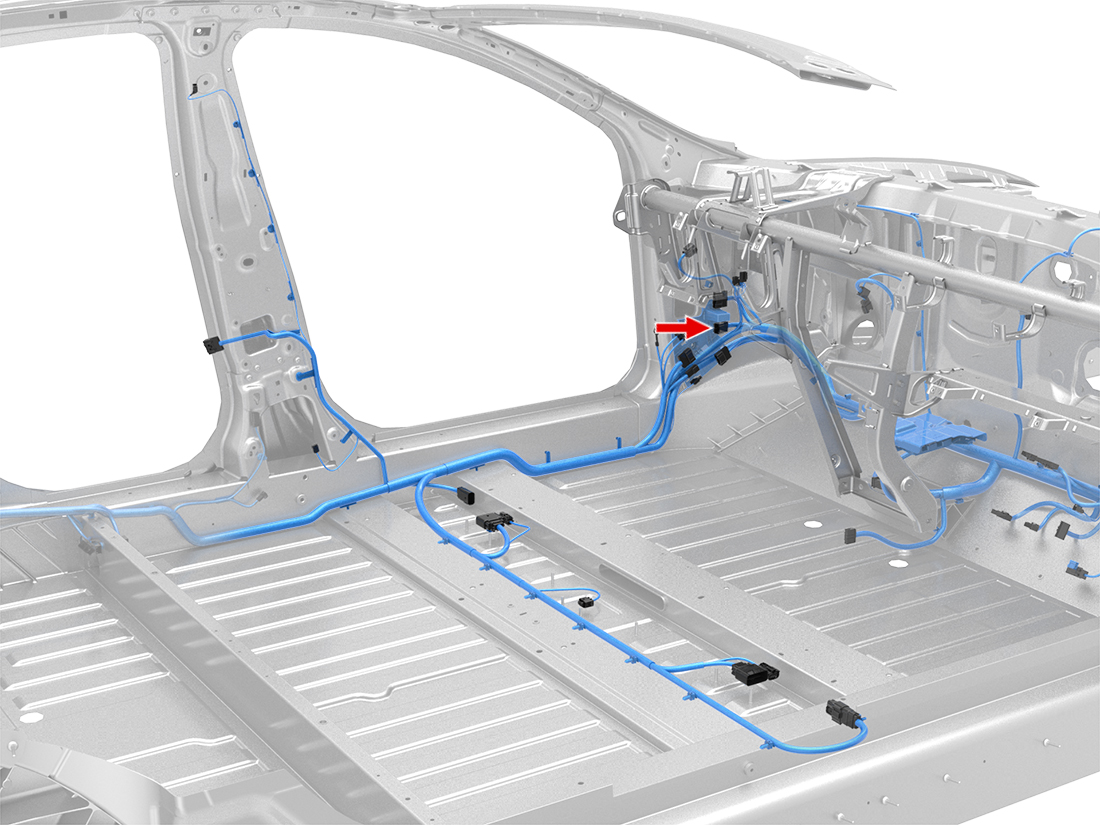

Location:
Connector Detail: SUMITOMO 6098-5650
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD/WH | 1.5 | SN | X945M-10 | 8230-4923 |
| 2 | GY | 1.5 | SN | X945M-18 | 8230-4923 |
| 3 | BK | 1.5 | SN | G660-1 | 8230-4923 |
| 4 | BK | 1.5 | SN | G660-1 | 8230-4923 |
| 5 | |||||
| 6 | |||||
| 7 | BU/WH | 1.5 | SN | X943M-10 | 8230-4923 |
| 8 | |||||
| 9 | |||||
| 10 | |||||
| 11 | |||||
| 12 | GN/WH | 1.5 | SN | X944M-10 | 8230-4923 |
| 13 | BU | 1.5 | SN | X943M-18 | 8230-4923 |
| 14 | |||||
| 15 | |||||
| 16 | |||||
| 17 | |||||
| 18 | GN | 1.5 | SN | X944M-18 | 8230-4923 |
