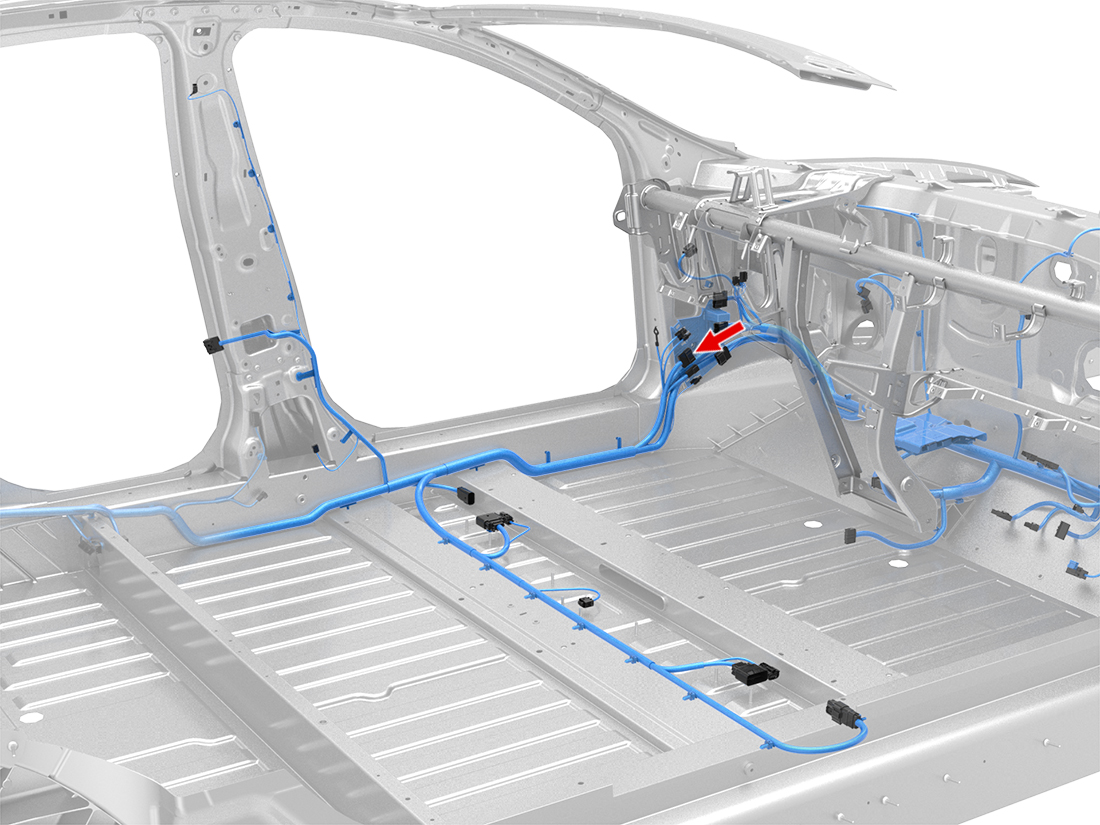

Location:

Connector Detail: SUMITOMO 6098-5631

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/WH	0.75	SN	X404-2	8100-3623
2	WH	0.75	SN	X404-5	8100-3623
3	BN	0.35	SN	X405-3	8100-3623
4	WH/BK	0.35	SN	X404-11	8100-3623
5	WH/BK	0.35	SN	X025-3	8100-3623
6	GY	0.35	SN	X025-14	8100-3623
7
8	OG	0.35	SN	X404-12	8100-3623
9
10	VT	0.75	SN	X404-6	8100-3623
11	RD/VT	0.75	SN	X404-1	8100-3623
12	BK	1	SN	G660-1	8100-3623
13	WH/BU	0.35	SN	X024-3	8100-3623
14	RD/GN	0.35	SN	X021-3	8100-3623
15	BK/VT	0.35	SN	X954M-17	8100-3623
16	RD/GY	0.35	SN		8100-3623
17	BU	0.35	SN		8100-3623
18	BK	2	SN	G660-1	8100-3623
