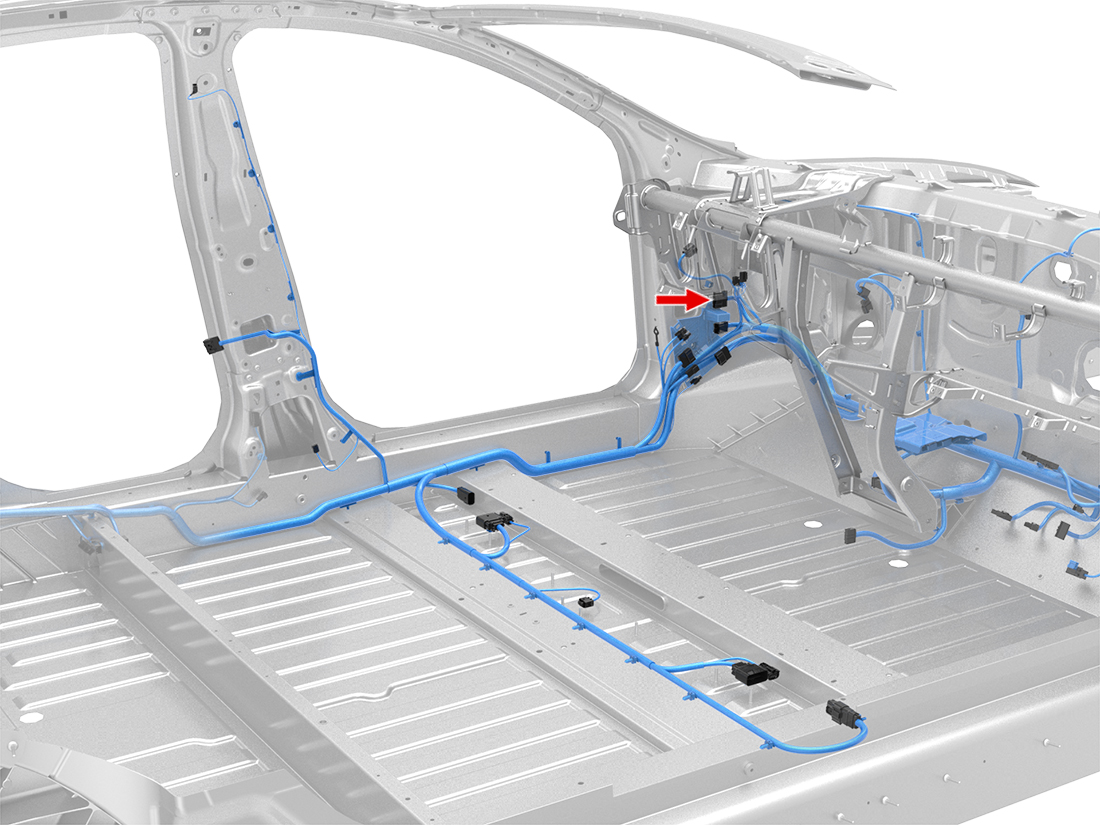

Location:

Connector Detail: YAZAKI 7286-1918

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BK	2	SN	G640-1	8100-3623
2	YE/WH	0.5	SN	X200-4	8100-3623
3	BN	0.5	SN	X200-5	8100-3623
4	WH/BU	0.5	SN	X200-22	8100-3623
5	RD/BU	0.5	SN	X200-23	8100-3623
6	OG/BK	0.5	SN	X055-16	8100-3623
7	VT/WH	0.35	SN	X776-2	8100-3623
8	VT	0.35	SN	X776-13	8100-3623
9
10	BK/VT	0.5	SN	X200-15	8100-3623
11	OG	0.5	SN	X200-16	8100-3623
12	RD/BK	0.5	SN	X200-31	8100-3623
13	OG/BK	0.5	SN	X200-32	8100-3623
14	YE/WH	0.35	SN		8100-3623
15	BK	1	SN	G660-1	8100-3623
16	WH/BK	0.5	SN	X200-6	8100-3623
17	BU	0.5	SN	X200-7	8100-3623
18	RD/GY	0.5	SN	X200-13	8100-3623
19	BK/GY	0.5	SN	X200-14	8100-3623
20	BN/WH	0.35	SN	X775-2	8100-3623
21	BN	0.35	SN	X775-13	8100-3623
22	YE/WH	0.35	SN	X776-6	8100-3623
23	YE	0.35	SN	X776-17	8100-3623
24	VT/WH	0.35	SN	X953M-10	8100-3623
25	VT	0.35	SN	X953M-22	8100-3623
26
