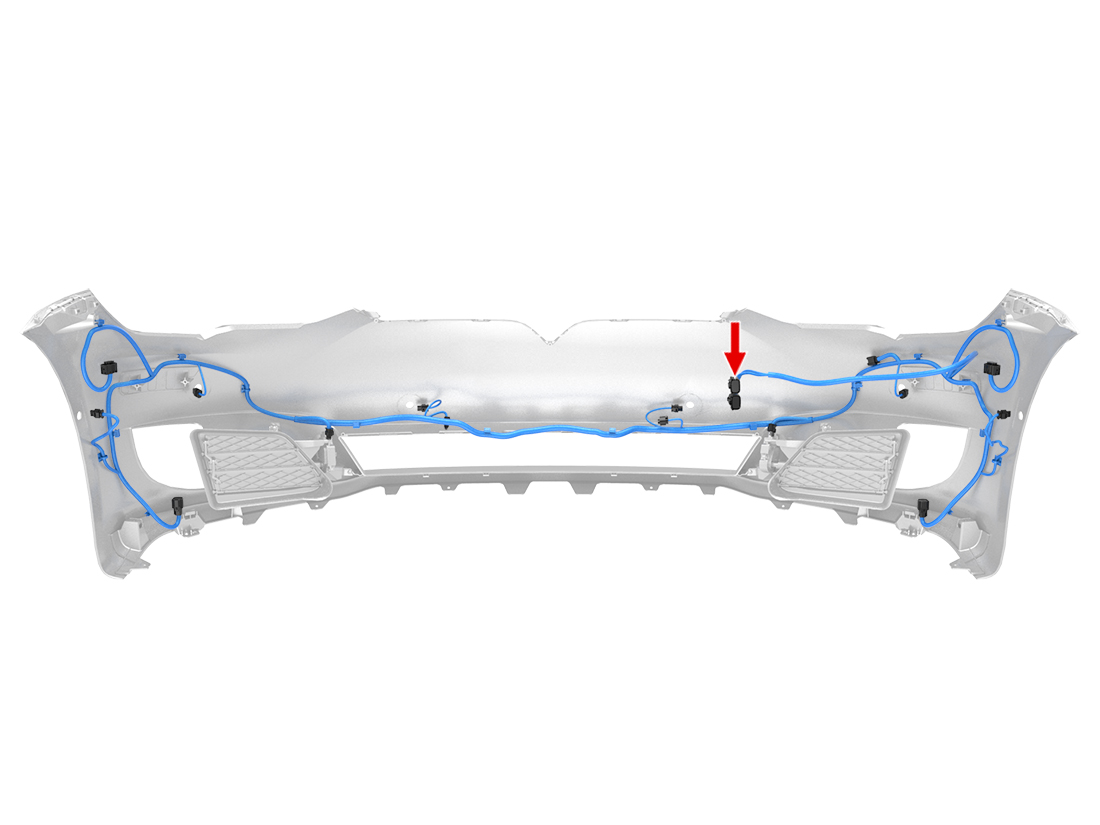

Location:

Connector Detail: MOLEX 33472-1201

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BN	0.35	SN		33012-3003
2	RD/VT	0.35	SN		33012-3003
3	RD/GN	0.35	SN	X129B-11	33012-3003
4	WH	0.35	SN	X126A-2	33012-3003
5	BN/WH	0.35	SN	X127A-2	33012-3003
6	OG/BK	0.35	SN	X977F-20	33012-3003
7	RD/YE	0.35	SN	X133A-2	33012-3003
8	BU/WH	0.35	SN	X132A-2	33012-3003
9	OG/BK	0.5	SN	X762-6	33012-3003
10	OG	0.5	SN	X762-3	33012-3003
11
12
