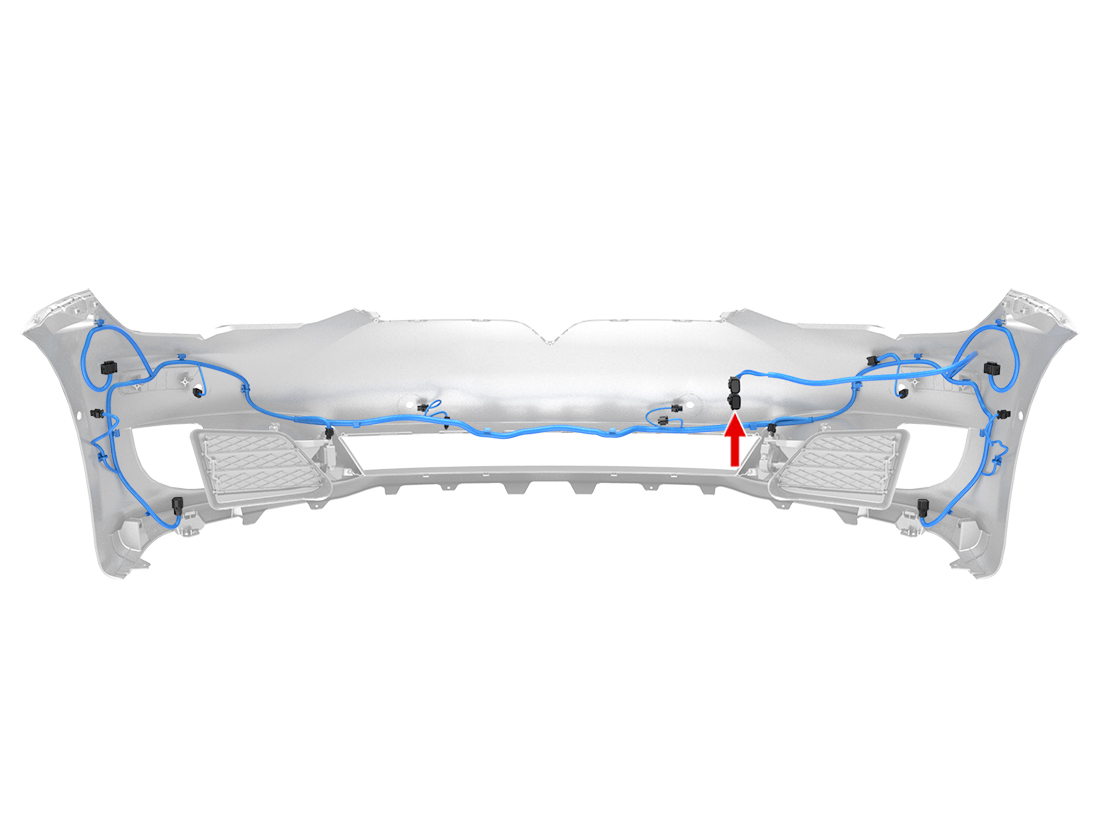

Location:

Connector Detail: MOLEX 33472-1202

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GN/WH	0.35	SN	X265-3	33012-3003
2	BU	0.35	SN	X265-2	33012-3003
3	YE	0.35	SN	X265-4	33012-3003
4	BU/WH	0.35	SN	X266-3	33012-3003
5	RD/WH	0.35	SN	X266-2	33012-3003
6	GN/RD	0.35	SN	X266-4	33012-3003
7	WH	0.5	SN		33012-3003
8	RD/BU	0.5	SN		33012-3003
9	GN	0.35	SN		33012-3003
10	BN/WH	0.5	SN	X091-1	33012-3003
11	GY	0.5	SN	X091-2	33012-3003
12	BK	0.75	SN		33012-3003
