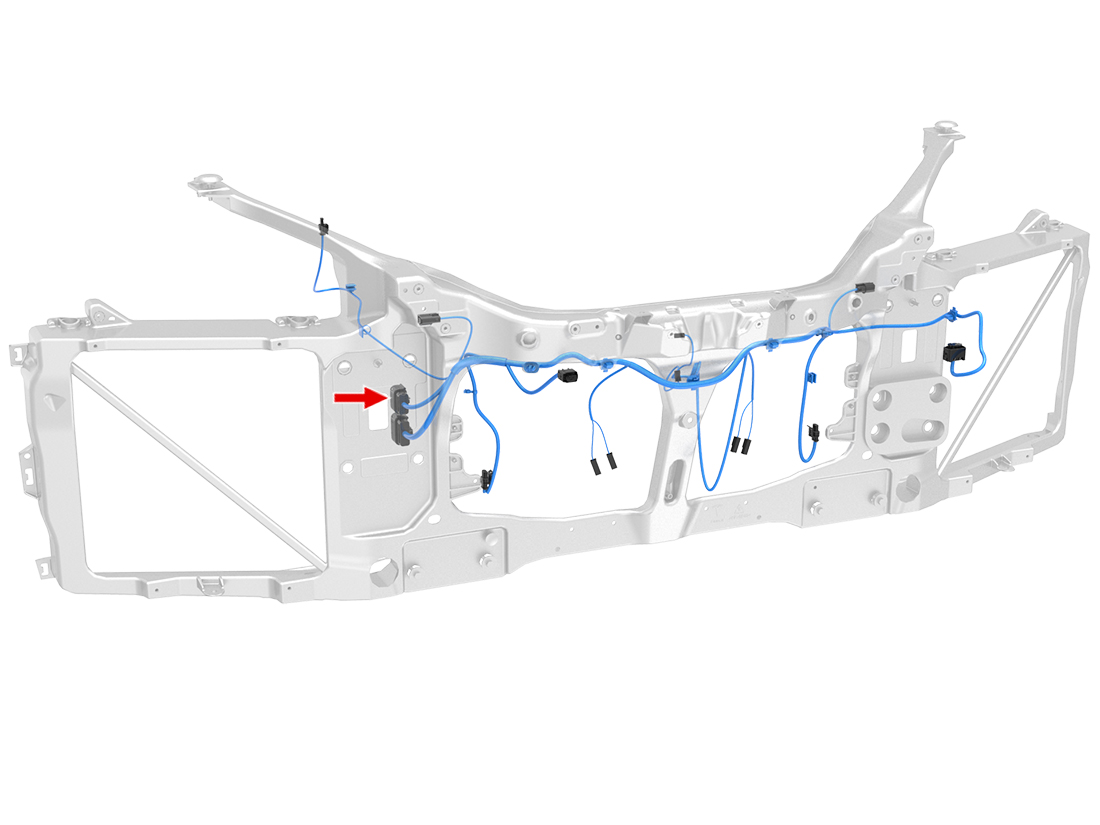

Location:

Connector Detail: MOLEX 33472-1601

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X138-4	33012-3003
2	BU/WH	0.35	SN	X138-2	33012-3003
3	BU	0.35	SN	X138-3	33012-3003
4	BK	0.5	SN		33012-3003
5	RD	0.5	SN	X202-1	33012-3003
6	VT/WH	0.5	SN	X202-2	33012-3003
7	OG	0.75	SN	X415-1	33012-3003
8	OG/BK	0.75	SN	X415-2	33012-3003
9
10
11
12	BN	0.5	SN	X383-1	33012-3003
13	RD/GN	0.5	SN	X203-1	33012-3003
14	BN/WH	0.5	SN	X203-2	33012-3003
15
16
