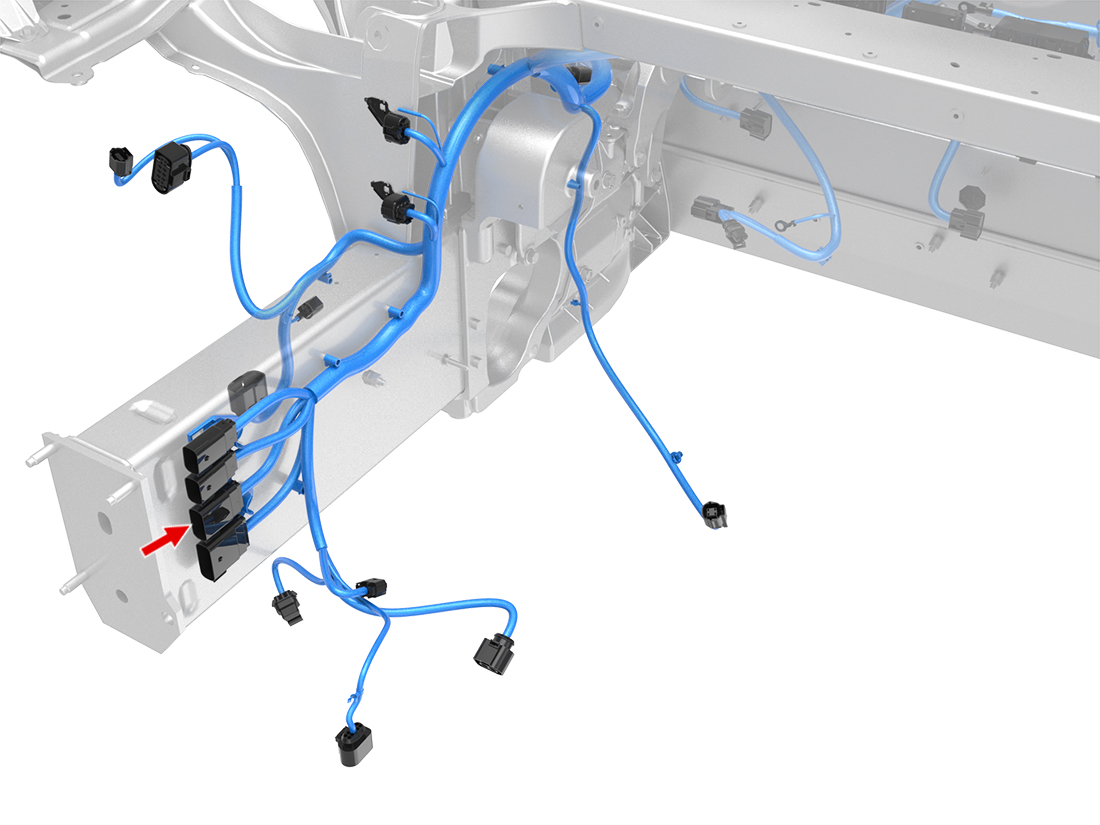

Location:

Connector Detail: MOLEX 33482-1601

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X561-16	33000-0004
2	BU/WH	0.35	SN	X958M-9	33000-0004
3	BU	0.35	SN	X958M-17	33000-0004
4	BK	0.5	SN	G510-1	33000-0004
5	RD	0.5	SN	X954F-4	33000-0004
6	VT/WH	0.5	SN	X954F-18	33000-0004
7	OG	0.75	SN	X958M-10	33000-0004
8	OG/BK	0.75	SN	X958M-11	33000-0004
9
10
11
12	BN	0.35	SN	X953F-23	33000-0004
13	RD/GN	0.5	SN	X954F-5	33000-0004
14	BN/WH	0.5	SN	X954F-19	33000-0004
15
16
