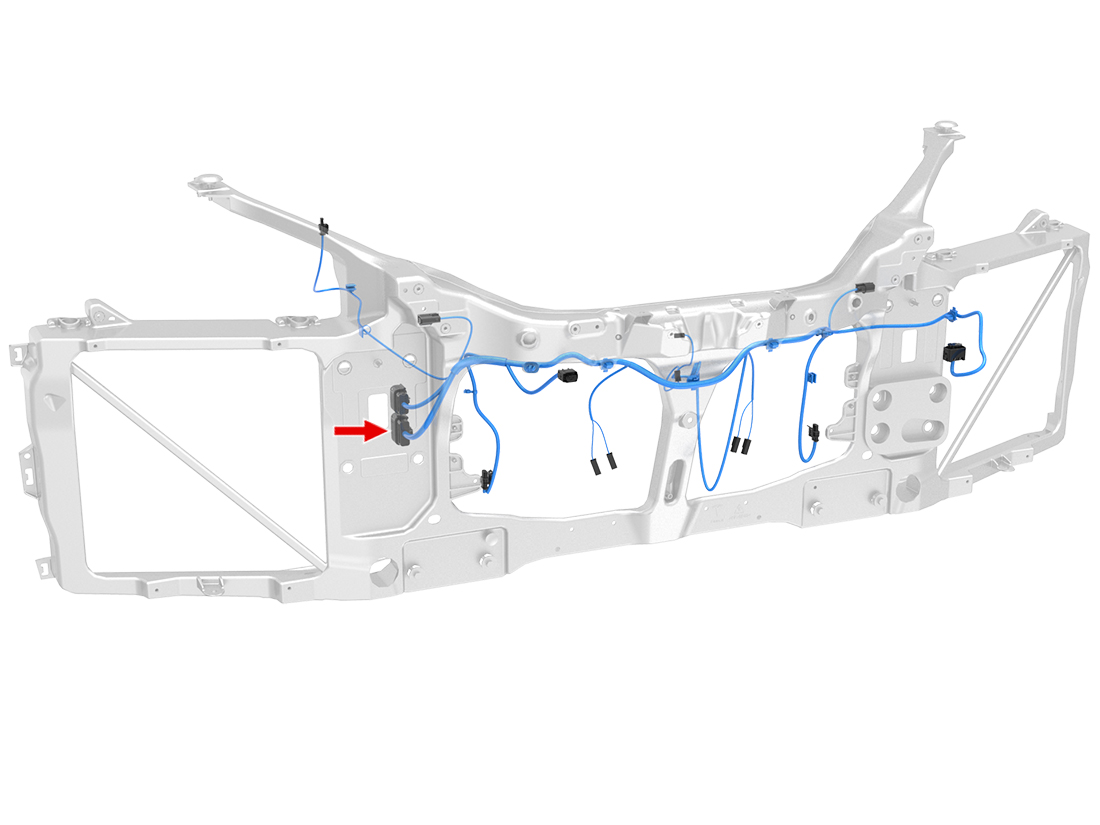

Location:

Connector Detail: MOLEX 33472-2002

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	RD/BU	0.5	SN		33012-3003
3	GN	0.35	SN		33012-3003
4	VT	0.75	SN	X484A-1	33012-3003
5	BK	0.75	SN	X484B-1	33012-3003
6
7	RD/YE	0.5	SN	X379-1	33012-3003
8	BK	0.5	SN		33012-3003
9	RD/VT	0.5	SN	X399-2	33012-3003
10	WH/BK	0.5	SN	X399-1	33012-3003
11
12	VT/WH	0.35	SN	X138-5	33012-3003
13	VT	0.35	SN	X138-6	33012-3003
14	RD/GY	0.75	SN	X485A-1	33012-3003
15	BK	0.75	SN	X485B-1	33012-3003
16	VT	0.35	SN	X288-1	33012-3003
17	WH	0.35	SN	X435A-1	33012-3003
18	BK/VT	0.35	SN	X435A-3	33012-3003
19	RD/GN	0.5	SN	X392-2	33012-3003
20	GY/WH	0.5	SN	X392-1	33012-3003
