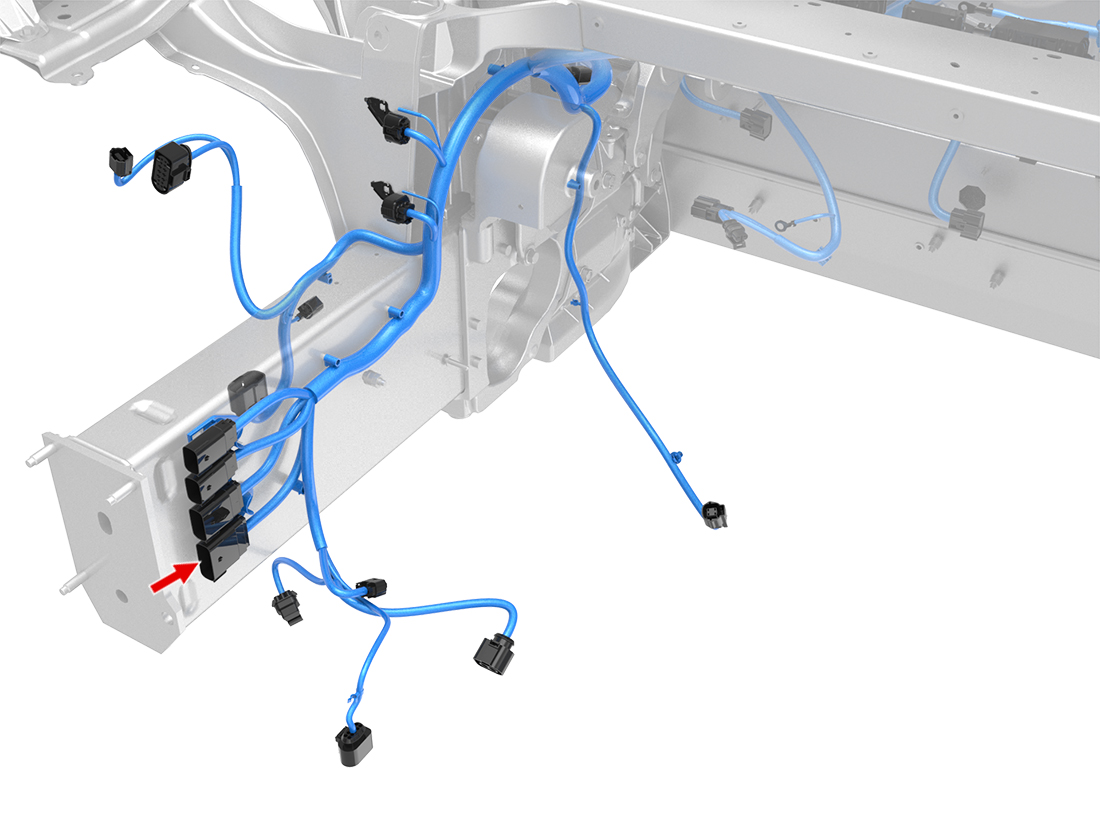

Location:

Connector Detail: MOLEX 33482-2102

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	RD/BU	0.5	SN	X563-12	33000-0004
3	GN	0.35	SN		33000-0004
4	VT	0.75	SN	X955F-20	33000-0004
5	BK	0.75	SN	G510-1	33000-0004
6
7	RD/YE	0.35	SN	X954F-2	33000-0004
8	BK	0.5	SN	X954F-24	33000-0004
9	RD/VT	0.35	SN	X954F-12	33000-0004
10	WH/BK	0.35	SN	X954F-13	33000-0004
11
12	VT/WH	0.35	SN	X953F-10	33000-0004
13	VT	0.35	SN	X953F-22	33000-0004
14	RD/GY	0.75	SN	X955F-12	33000-0004
15	BK	0.75	SN	G510-1	33000-0004
16	VT	0.35	SN	X954F-25	33000-0004
17	WH	0.35	SN	X020-20	33000-0004
18	BK/VT	0.35	SN	X954F-17	33000-0004
19	RD/GN	0.35	SN	X954F-14	33000-0004
20	GY/WH	0.35	SN	X954F-15	33000-0004
