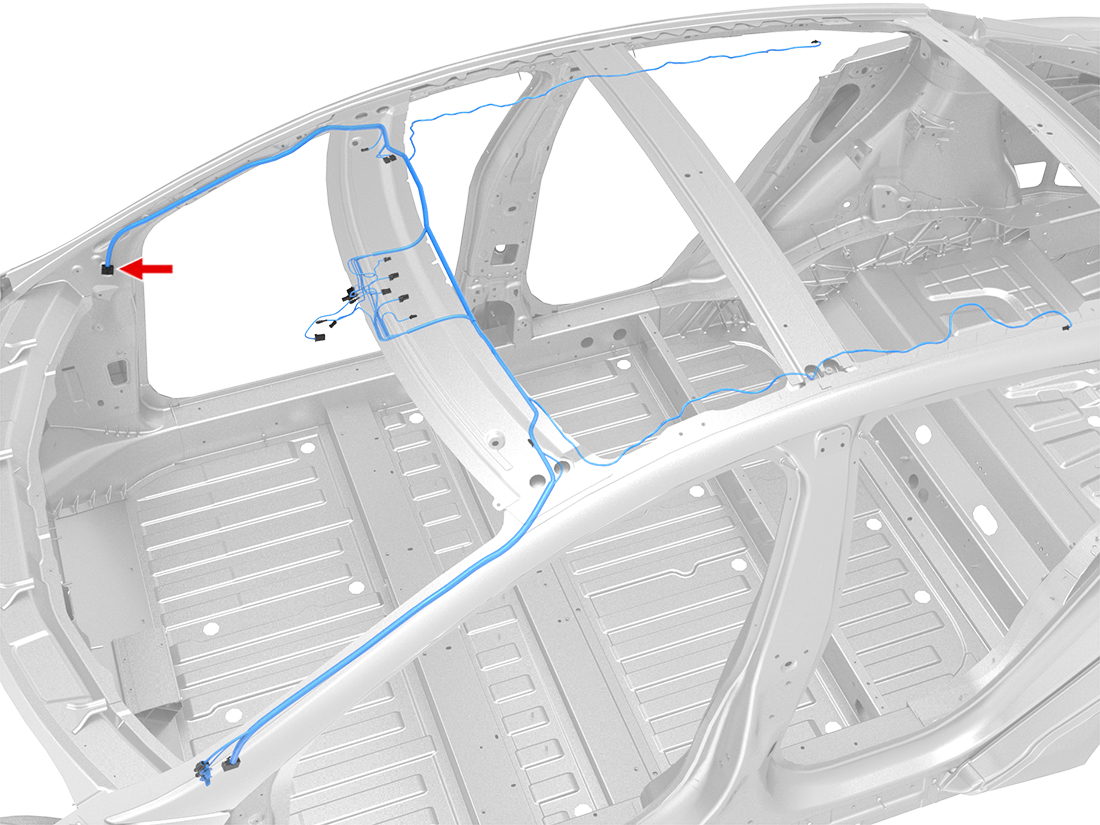

Location:

Connector Detail: YAZAKI 7283-6388-40

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	VT/WH	0.35	SN	X075-1	7116-4720-02
3	RD/VT	0.35	SN	X075-3	7116-4720-02
4	YE	0.35	SN	X075-2	7116-4720-02
5
6
7	OG	0.35	SN	X408A-3	7116-4720-02
8	GN	0.35	SN	X408A-4	7116-4720-02
9	BK/WH	0.35	SN	X408A-5	7116-4720-02
10	BK	0.75	SN		7116-4720-02
11
12	WH	0.35	SN	X284-3	7116-4720-02
13	GY	0.35	SN	X284-1	7116-4720-02
14	BU	0.35	SN	X285-3	7116-4720-02
15	RD/BK	0.35	SN	X285-1	7116-4720-02
16	GY/WH	0.35	SN	X283-3	7116-4720-02
17	YE/WH	0.35	SN	X283-1	7116-4720-02
18	WH/BU	0.35	SN	X282-3	7116-4720-02
19	RD/WH	0.35	SN	X282-1	7116-4720-02
20
