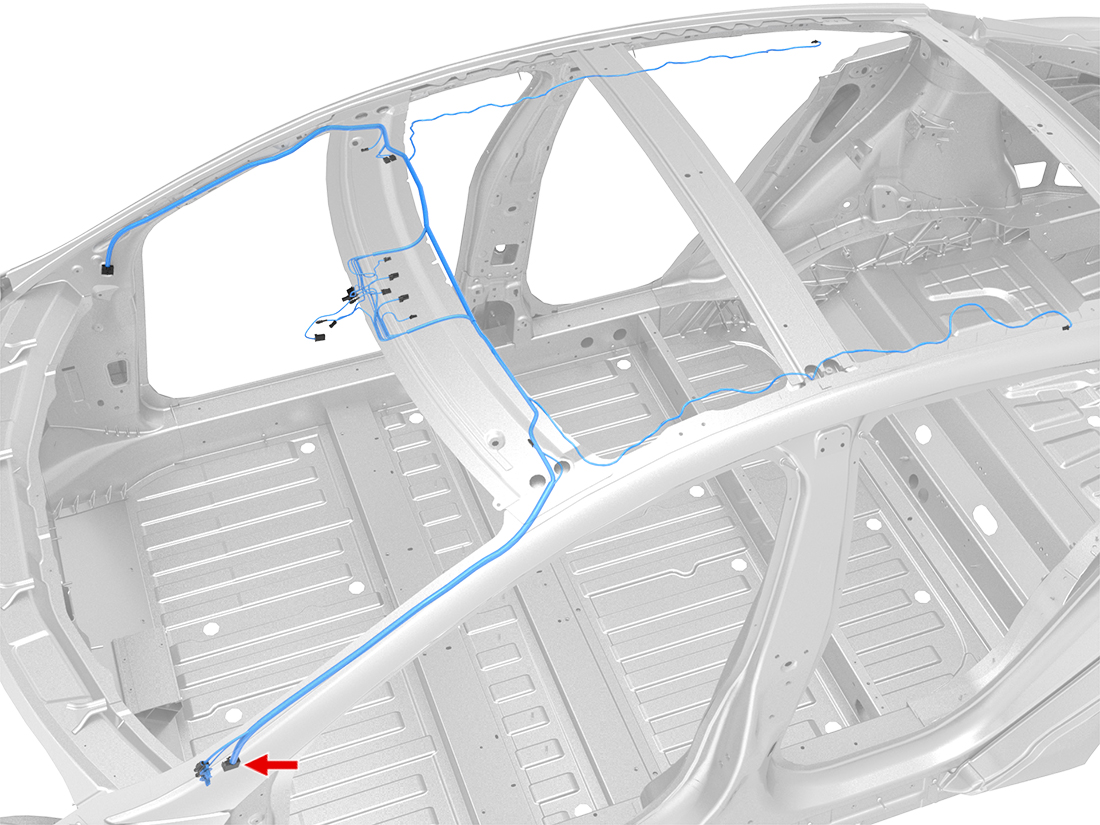

Location:

Connector Detail: YAZAKI 7283-6388-40

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	BN/WH	0.35	SN	X442-2	7116-4720-02
3	BK	0.35	SN	X442-3	7116-4720-02
4	SI	0.35	SN	X442-1	7116-4720-02
5
6
7	RD/BU	0.35	SN	X408A-1	7116-4720-02
8	RD/GY	0.35	SN	X408A-2	7116-4720-02
9
10
11
12	VT/WH	0.35	SN	X441-2	7116-4720-02
13	VT	0.35	SN	X441-3	7116-4720-02
14	SI	0.35	SN	X441-1	7116-4720-02
15
16	RD/BK	0.35	SN	X400-1	7116-4720-02
17	GN/RD	0.35	SN	X400-2	7116-4720-02
18	BU/WH	0.5	SN	X143-1	7116-4720-02
19
20
