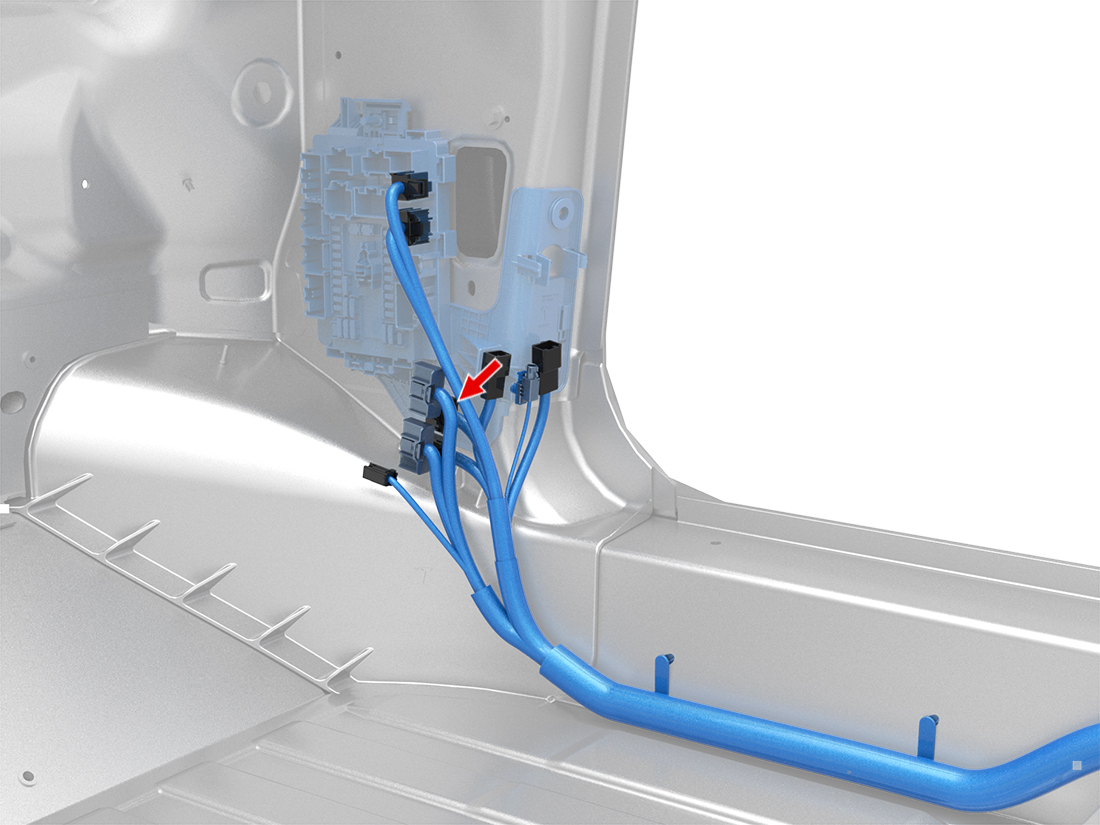

Location:

Connector Detail: SUMITOMO 6098-3925

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2
3	RD/WH	0.35	SN	X779-6	8100-3625
4	BK/VT	0.35	SN	X272-1	8100-3625
5	YE/WH	0.35	SN	X272-3	8100-3625
6
7	RD/BK	0.35	SN	X921M-6	8100-3625
8	BN	0.35	SN	X129B-14	8100-3625
9	RD/VT	0.35	SN	X129B-10	8100-3625
10	RD/GN	0.35	SN	X963F-3	8100-3625
11	WH	0.35	SN	X963F-4	8100-3625
12
13
14	RD	0.35	SN	X779-17	8100-3625
15	WH/BK	0.35	SN	X921M-11	8100-3625
16	VT	0.35	SN	X921M-13	8100-3625
17	BK/WH	0.35	SN	X141-2	8100-3625
18	OG	0.35	SN		8100-3625
19	BN/WH	0.35	SN	X963F-5	8100-3625
20	OG/BK	0.35	SN	X963F-6	8100-3625
21	BU/WH	0.35	SN	X963F-8	8100-3625
22	RD/YE	0.35	SN	X963F-7	8100-3625
