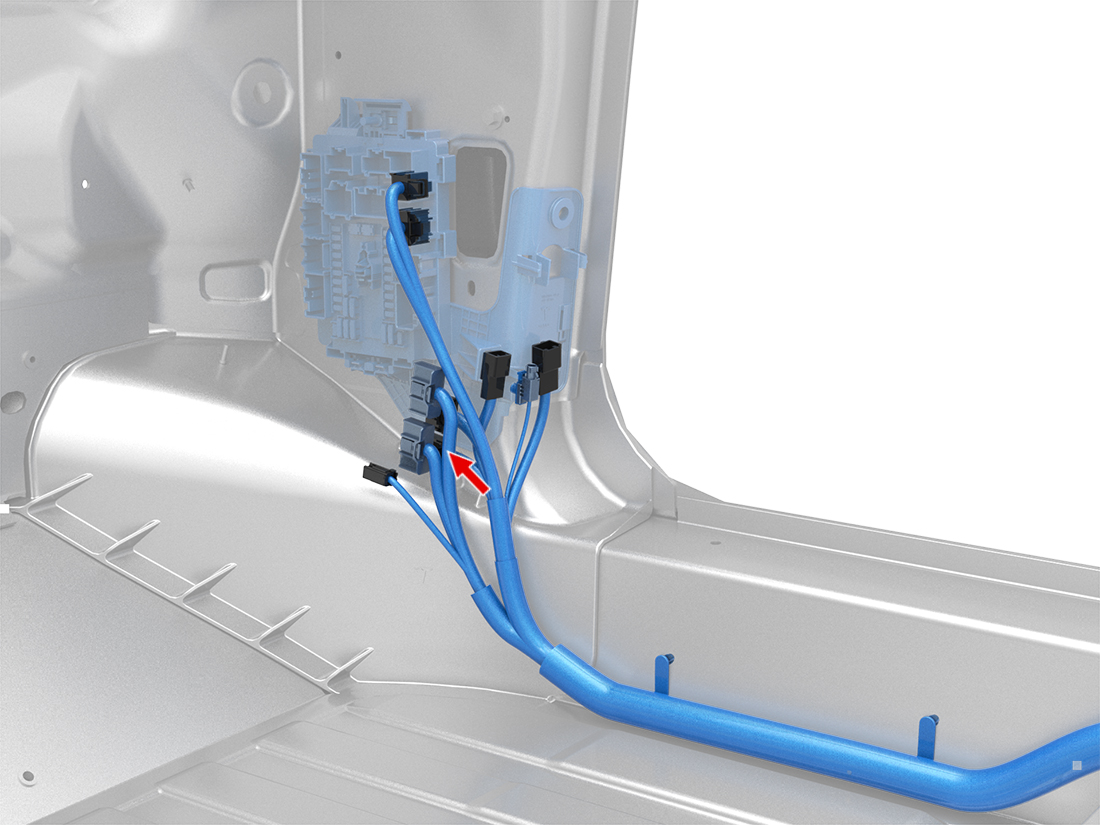

Location:

Connector Detail: SUMITOMO 6098-6102

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GN/WH	0.5	SN	X932M-5	8240-0214
2	RD/GN	0.5	SN	X932M-1	8240-0214
3	VT	0.5	SN	X932M-2	8240-0214
4	RD/VT	0.5	SN	X932M-7	8240-0214
5	BN	0.5	SN	X932M-8	8240-0214
6	BK/WH	0.5	SN	X932M-11	8240-0214
7	RD/GY	2	SN	X101-8	8240-0214
8	GN	0.5	SN	X932M-6	8240-0214
9	BK	0.5	SN	X932M-3	8240-0214
10	GY/WH	0.5	SN	X932M-9	8240-0214
11	WH	0.5	SN	X932M-12	8240-0214
12
