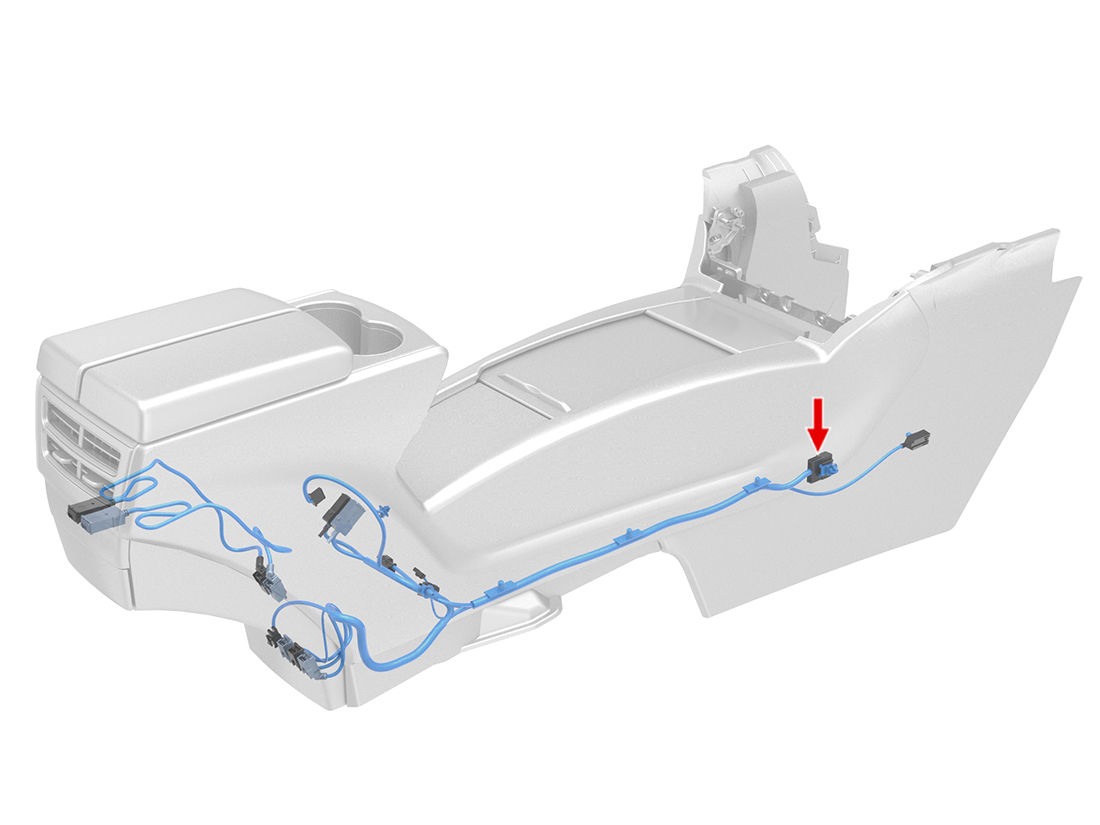

Location:
Connector Detail: SUMITOMO 6098-5594
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | RD | 0.75 | X577-3 | |
| 2 | ||||
| 3 | RD | 0.35 | X481-1 | |
| 4 | BK | 0.35 | X481-3 | |
| 5 | SI | 0.35 | X481-2 | |
| 6 | ||||
| 7 | ||||
| 8 | ||||
| 9 | ||||
| 10 | BK/WH | 0.75 | X522-4 | |
| 11 | RD | 1 | X982F-11 | |
| 12 | ||||
| 13 | OR | 0.35 | X059-6 | |
| 14 | VT | 0.35 | X059-4 | |
| 15 | GY | 0.35 | X059-2 | |
| 16 | RD/WH | 0.35 | X059-1 | |
| 17 | ||||
| 18 | BK | 1 | X523-1 |
