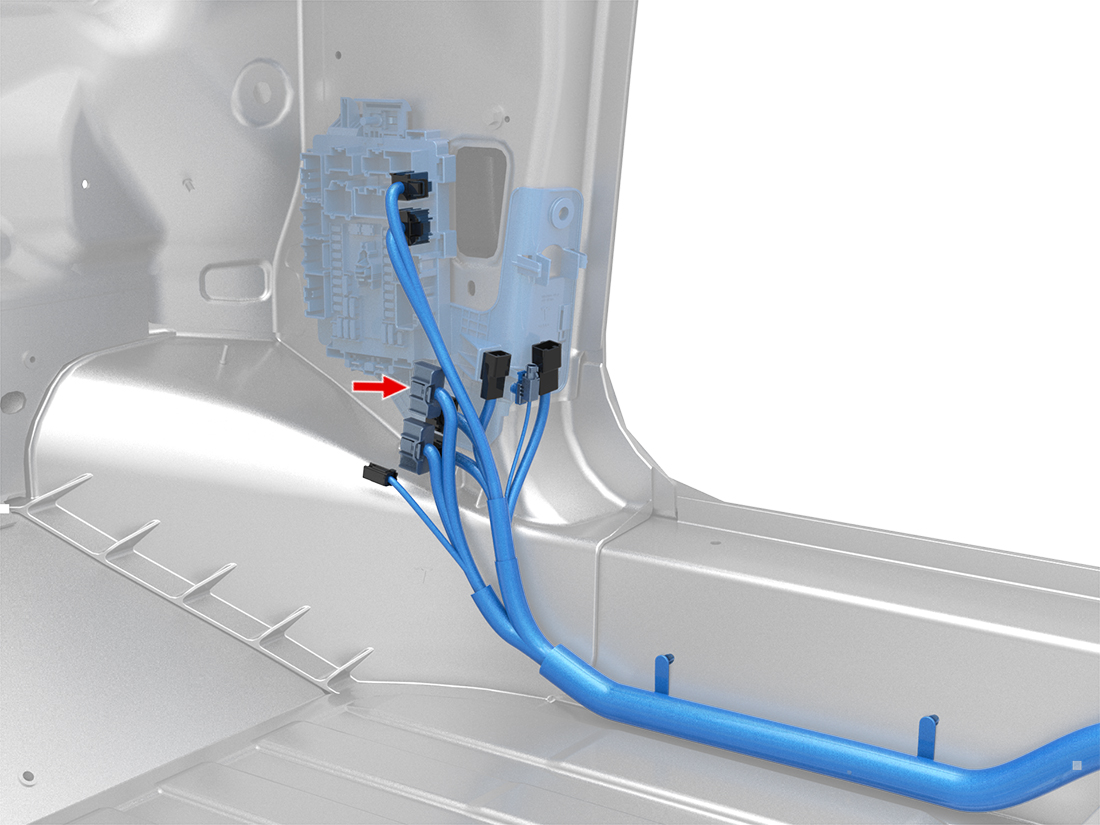

Location:

Connector Detail: YAZAKI 7287-1918

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	RD/WH	0.5	SN	X220-1	8100-3625
3	WH/RD	0.5	SN	X218-1	8100-3625
4	VT	0.5	SN	X207-1	8100-3625
5	RD/GN	0.5	SN	X209-1	8100-3625
6	WH/BK	0.5	SN	X221-1	8100-3625
7	BU	0.5	SN	X221-2	8100-3625
8	RD	0.35	SN	X482-1	8100-3625
9	SI	0.35	SN		8100-3625
10	YE	0.35	SN		8100-3625
11	WH/RD	0.35	SN	X921M-1	8100-3625
12	BN	0.35	SN	X921M-3	8100-3625
13	GY/WH	0.35	SN	X921M-8	8100-3625
14
15
16	BK/GY	0.5	SN	X220-2	8100-3625
17	WH/BU	0.5	SN	X218-2	8100-3625
18	RD/BU	0.5	SN	X207-2	8100-3625
19	BK/WH	0.5	SN	X209-2	8100-3625
20	RD/GY	0.35	SN	X921M-5	8100-3625
21	BK	0.35	SN	X482-3	8100-3625
22	WH/BU	0.35	SN	X774-5	8100-3625
23	BU	0.35	SN	X774-16	8100-3625
24	BN/WH	0.35	SN		8100-3625
25	OG	0.35	SN	X921M-4	8100-3625
26	RD/BK	0.35	SN	X272-4	8100-3625
