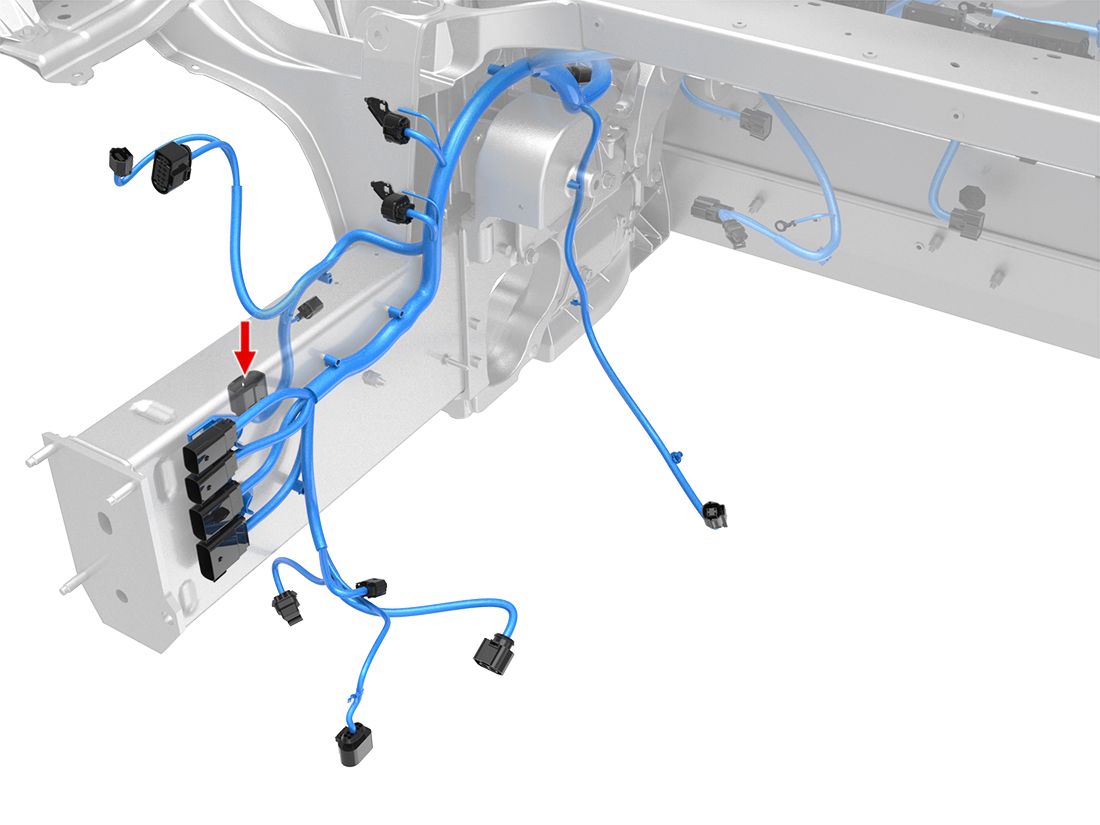

Connector Detail: SUMITOMO 6189-0588
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | OG | 5 | SN | X549-1 | SUMITOMO 8100-2980 | SUMITOMO 7165-0400 | 1116657-00-B | |
| 2 | RD/GN | 0.5 | SN | X053-12 | SUMITOMO 8100-0467 | SUMITOMO 7165-0346 | 1099528-00-B | |
| 3 | BK | 5 | SN | G510-1 | SUMITOMO 8100-2980 | SUMITOMO 7165-0400 | 1116657-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | OG | 5 | SN | X549-1 | SUMITOMO 8100-2980 | SUMITOMO 7165-0400 | 1116657-00-B | |
| 2 | RD/GN | 0.5 | SN | X053-12 | SUMITOMO 8100-0467 | SUMITOMO 7165-0346 | 1099528-00-B | |
| 3 | BK | 5 | SN | G510-1 | SUMITOMO 8100-2980 | SUMITOMO 7165-0400 | 1116657-00-B | |
