X379 - s-lhd-sop11

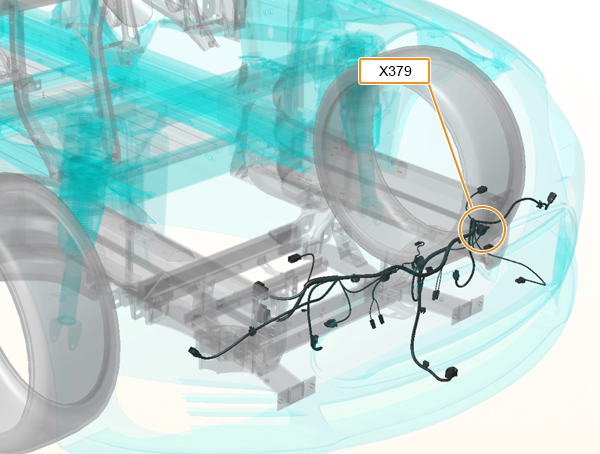

Location:
Connector Detail: AEES E-3550
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/YE | 0.5 | SN | X966F-7 | YAZAKI 7116-4102-02 | QSR E1644-06 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | Z71-+GDB01-L | YAZAKI 7116-4102-02 | QSR E1644-06 | 1099558-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/YE | 0.5 | SN | X966F-7 | YAZAKI 7116-4102-02 | QSR E1644-06 | 1099558-00-B | |
| 2 | BK | 0.5 | SN | Z71-+GDB01-L | YAZAKI 7116-4102-02 | QSR E1644-06 | 1099558-00-B |
