X383 - s-lhd-sop11

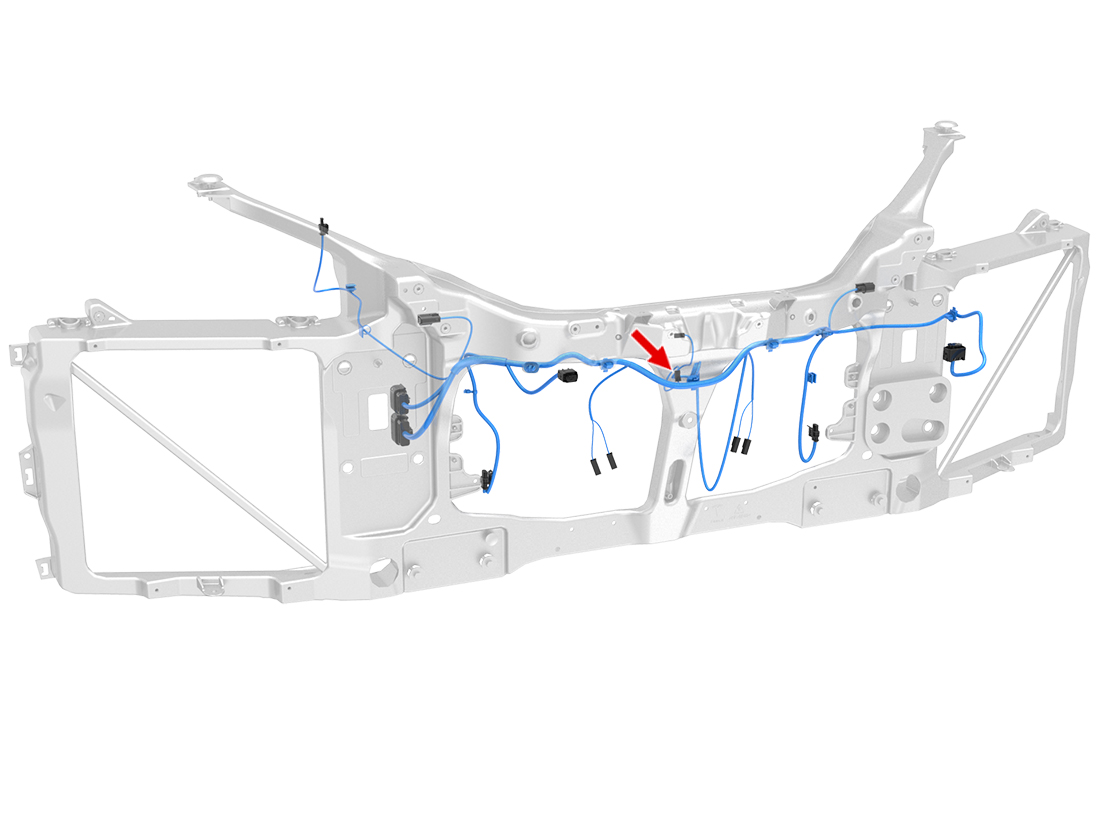

Location:
Connector Detail: AMP 1-1718346-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.5 | SN | X965F-12 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.5 | SN | Z71-+GDB01-L | AMP 5-963715-1 | 1099458-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN | 0.5 | SN | X965F-12 | AMP 5-963715-1 | 1099458-00-A | ||
| 2 | BK | 0.5 | SN | Z71-+GDB01-L | AMP 5-963715-1 | 1099458-00-A |
