X530 - s-lhd-sop11

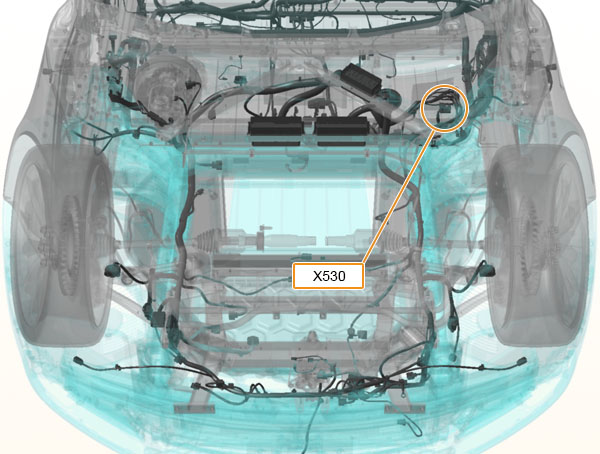

Location:
Connector Detail: YAZAKI 7003-1930-02
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
RD
32
SN
X542-1
-
Cavity
Color
Size
Plate
Destination
Terminal
1
RD
32
SN
X542-1
-
