2012-2020 Model S Connector Reference
Skip to main content

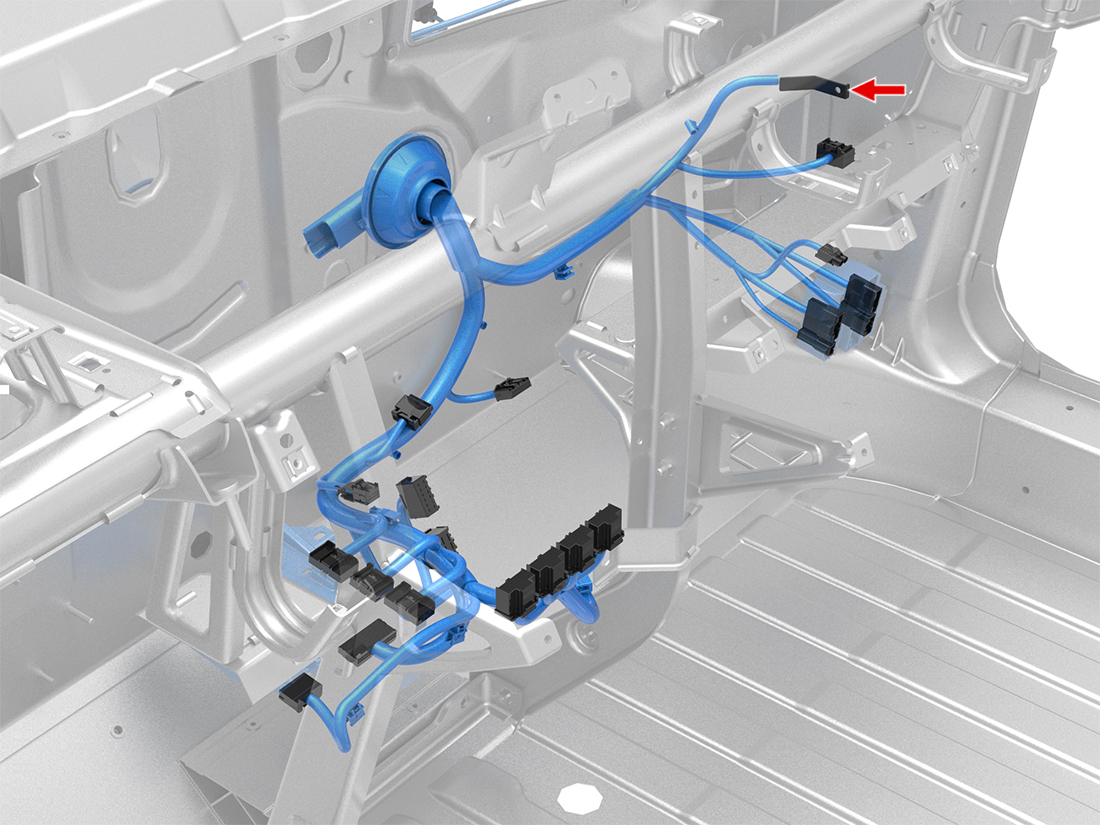

X534 - s-lhd-sop11
Location:
Connector Detail: CPT GCRT1163-0202AA
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
RD/BK
16
SN
X510-1
-
