X024 - s-lhd-sop12

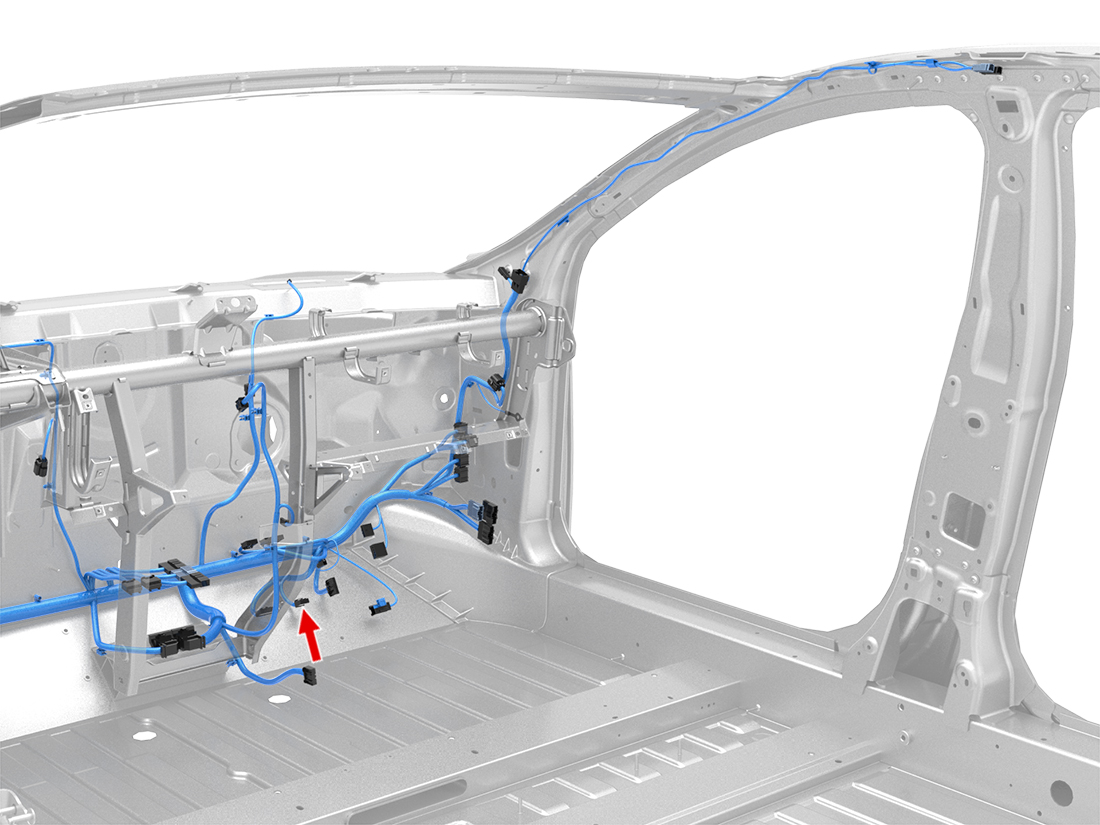

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | JAE | M34S75C4F1 | 0.8x0.64F | RD/BK | 0.35 | X953M | 25 | ||
| 3 | JAE | M34S75C4F1 | 0.8x0.64F | WH/BU | 0.35 | X948M | 13 | ||
| 4 | JAE | M34S75C4F1 | 0.8x0.64F | YE | 0.35 | X910M | 10 | ||
| 5 | JAE | M34S75C4F2 | 0.8x0.64F | BN | 0.50 | X953M | 23 | ||
| 6 | JAE | M34S75C4F1 | 0.8x0.64F | OG | 0.35 | X388 | 1 | ||
| 7 | JAE | M34S75C4F2 | 0.8x0.64F | RD/VT | 0.50 | X954M | 12 | ||
| 8 | JAE | M34S75C4F2 | 0.8x0.64F | WH/BK | 0.50 | X954M | 13 | ||
| 9 | JAE | M34S75C4F1 | 0.8x0.64F | RD/GY | 0.35 | X953M | 24 | ||
| 10 | JAE | M34S75C4F1 | 0.8x0.64F | RD/WH | 0.35 | X579 | 8 | ||
| 11 | JAE | M34S75C4F1 | 0.8x0.64F | GY | 0.35 | X944M | 9 | ||
| 12 | JAE | M34S75C4F1 | 0.8x0.64F | WH | 0.35 | X943M | 9 | ||
| 13 | JAE | M34S75C4F1 | 0.8x0.64F | BU | 0.35 | ||||
| 14 | |||||||||
| 15 | JAE | M34S75C4F2 | 0.8x0.64F | RD/GN | 0.50 | X954M | 14 | ||
| 16 | JAE | M34S75C4F2 | 0.8x0.64F | GY/WH | 0.50 | X954M | 15 | ||
