X042A - s-lhd-sop12

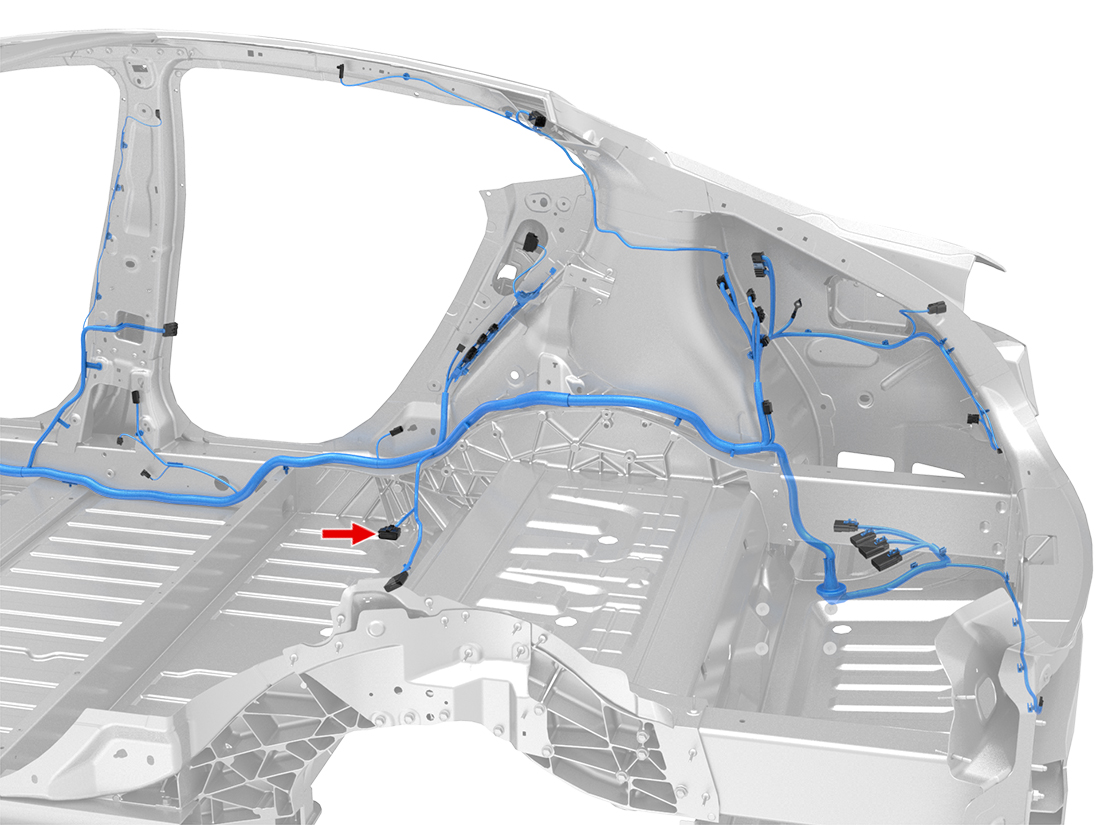

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | RD/BU | 0.50 | TESLA | MAT-120-240 | X573 | 5 |
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | WH/BK | 0.35 | TESLA | MAT-120-240 | X976M | 7 |
| 3 | MOLEX | 33012-3004 | 1.5x0.8F | YE/WH | 0.50 | TESLA | MAT-120-240 | X976M | 19 |
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.50 | TESLA | MAT-120-240 | X779 | 16 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | VT | 0.35 | TESLA | MAT-120-240 | X976M | 6 |
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | RD/GY | 0.35 | TESLA | MAT-120-240 | X976M | 8 |
| 7 | |||||||||
| 8 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.35 | TESLA | MAT-120-240 | X976M | 17 |
| 9 | MOLEX | 33012-3004 | 1.5x0.8F | BU | 0.35 | TESLA | MAT-120-240 | X976M | 20 |
| 10 | |||||||||
| 11 | MOLEX | 33012-3004 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | G700 | 1 |
| 12 | MOLEX | 33012-3002 | 1.5x0.8F | VT/WH | 0.75 | TESLA | MAT-120-240 | X931M | 14 |
| 13 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.50 | TESLA | MAT-120-240 | X931M | 6 |
| 14 | MOLEX | 33012-3004 | 1.5x0.8F | RD/WH | 0.50 | TESLA | MAT-120-240 | X779 | 5 |
| 15 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | X976M | 16 |
| 16 | MOLEX | 33012-3004 | 1.5x0.8F | GY | 0.50 | TESLA | MAT-120-240 | X976M | 18 |
| 17 | |||||||||
| 18 | |||||||||
| 19 | MOLEX | 33012-3004 | 1.5x0.8F | BU/WH | 0.35 | TESLA | MAT-120-240 | X976M | 10 |
| 20 | |||||||||
