X049 - s-lhd-sop12

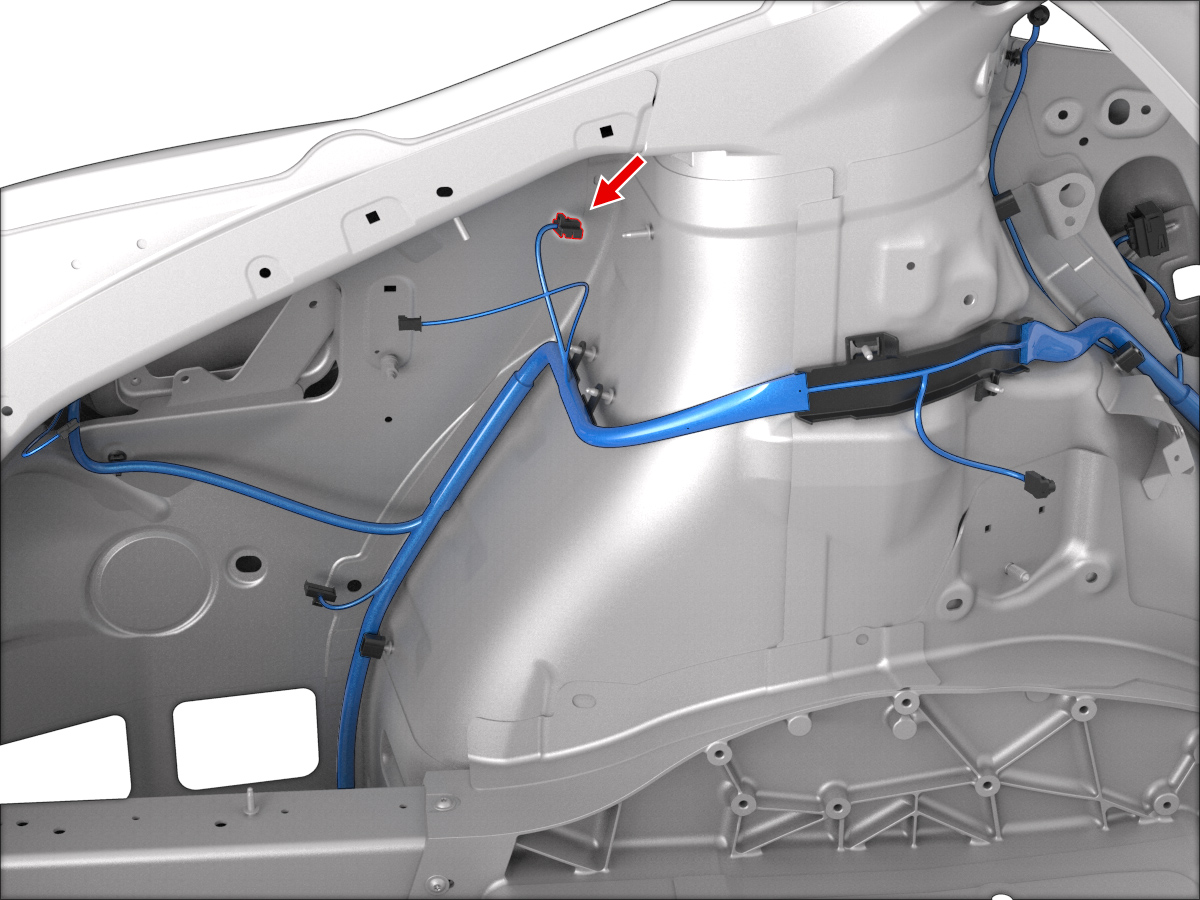

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-928999-1 | 0.63x0.63F | RD | 0.35 | X778 | 15 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | RD/WH | 0.35 | X778 | 4 | ||
| 3 | |||||||||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | WH | 0.35 | X976F | 16 | ||
| 5 | AMP | 5-928999-1 | 0.63x0.63F | WH/BK | 0.35 | X976F | 7 | ||
| 6 | AMP | 5-928999-1 | 0.63x0.63F | GN | 0.35 | X976F | 17 | ||
| 7 | AMP | 5-928999-1 | 0.63x0.63F | RD | 0.35 | X778 | 14 | ||
| 8 | AMP | 5-928999-1 | 0.63x0.63F | BU/WH | 0.35 | X976F | 10 | ||
| 9 | AMP | 5-963715-1 | 0.63x0.63F | BK | 0.50 | G720 | 1 | ||
| 10 | AMP | 5-963715-1 | 0.63x0.63F | RD/BU | 0.50 | X570 | 3 | ||
