X071 - s-lhd-sop12

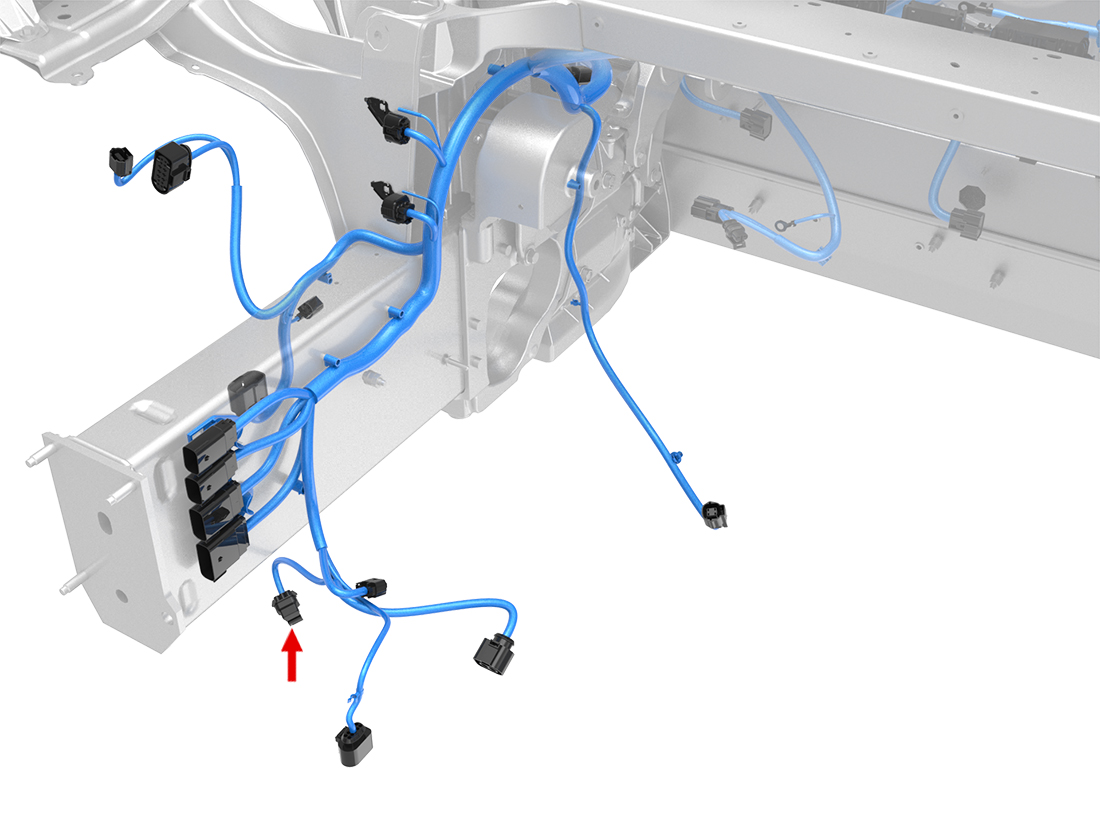

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12084200 | 1.5x0.6FS | RD/GY | 0.35 | DELPHI | 15324974 | X050 | 15 |
| B | |||||||||
| C | DELPHI | 12084200 | 1.5x0.6FS | BK | 0.35 | DELPHI | 15324974 | G510 | 1 |
| D | DELPHI | 12084200 | 1.5x0.6FS | BK/GY | 0.35 | DELPHI | 15324974 | X052 | 17 |
| E | |||||||||
| F | DELPHI | 12084200 | 1.5x0.6FS | YE/WH | 0.35 | DELPHI | 15324974 | X052 | 7 |
