X081 - s-lhd-sop12

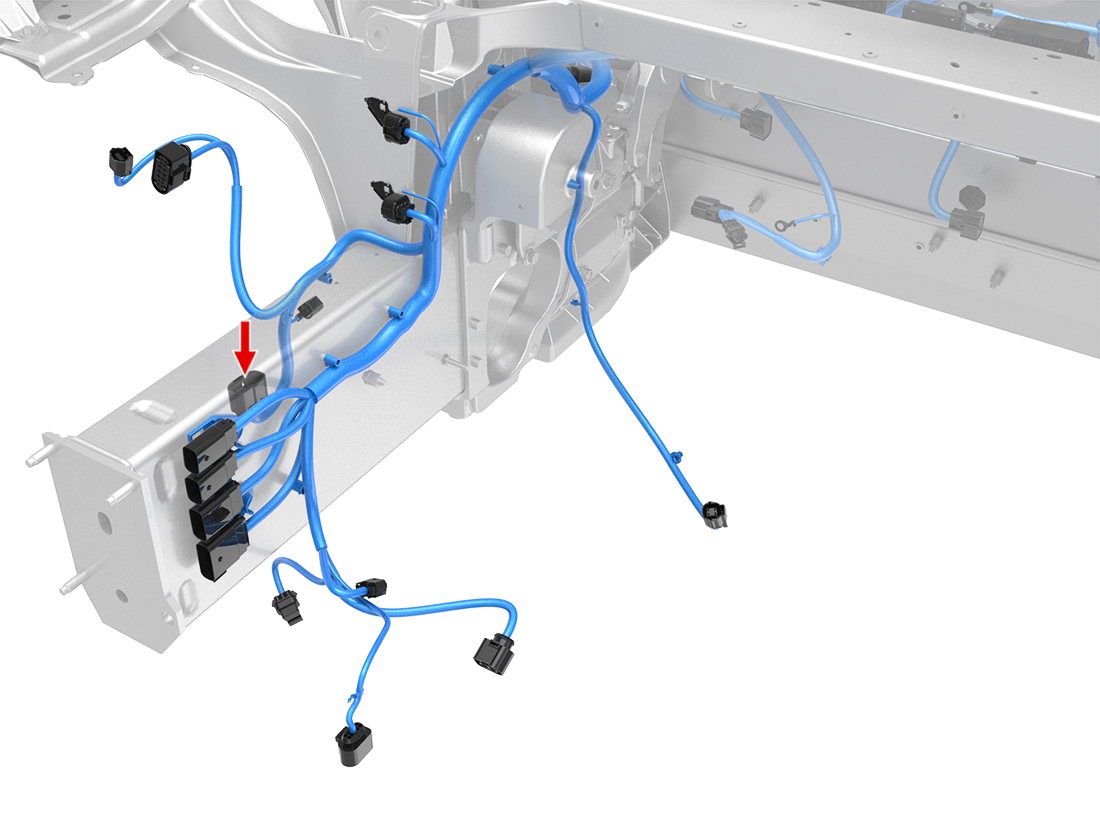

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-2980 | 8.0x0.8FS | OG | 5.00 | SUMITOMO | 7165-0400 | X549 | 1 |
| 2 | SUMITOMO | 8100-0466 | 4.8x0.8FS | RD/GN | 0.50 | SUMITOMO | 7165-0346 | X053 | 12 |
| 3 | SUMITOMO | 8100-2980 | 8.0x0.8FS | BK | 5.00 | SUMITOMO | 7165-0400 | G510 | 1 |
