X099 - s-lhd-sop12

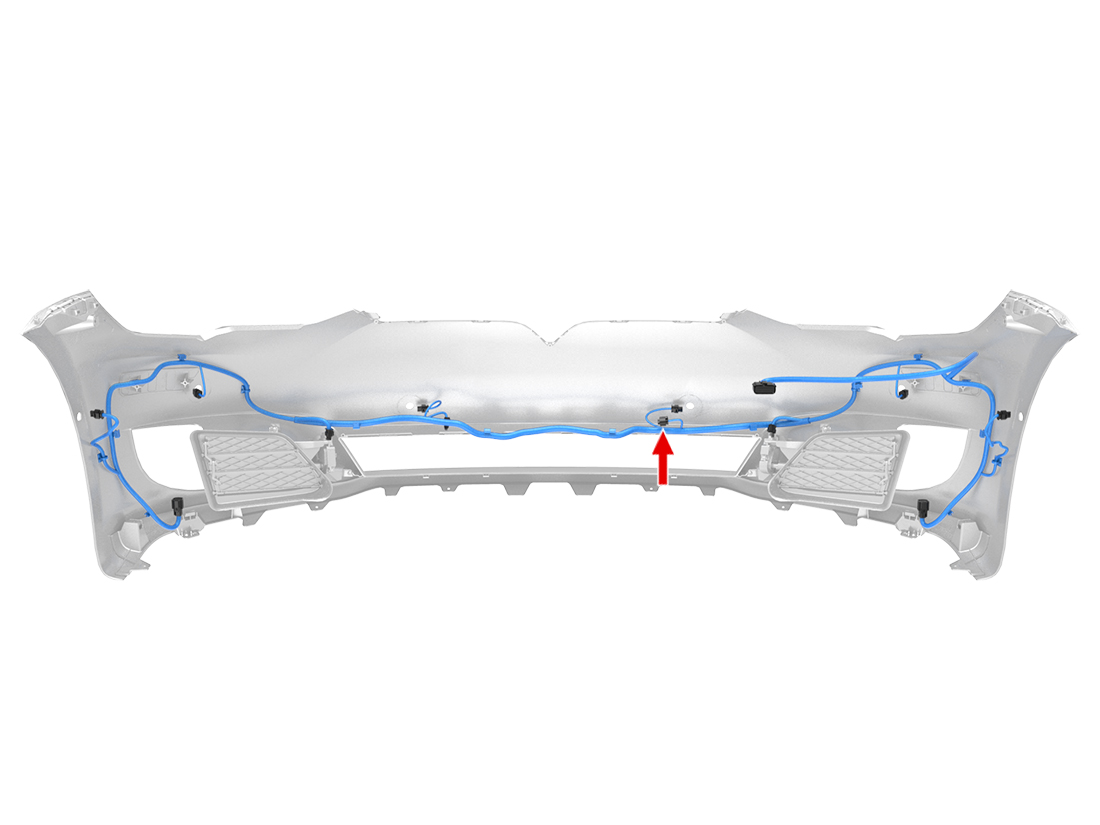

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-965906-1 | 0.63x0.63FS | RD/BU | 0.50 | AMP | 967067-1 | ||
| 2 | AMP | 5-965906-1 | 0.63x0.63FS | BK | 0.50 | AMP | 967067-1 | ||
| 3 | AMP | 5-965906-1 | 0.63x0.63FS | GN | 0.50 | AMP | 967067-1 |
