X179 - s-lhd-sop12

Tesla Part Number

1039297-00-A

Connector

SUMITOMO 6098-4008

Color

WH

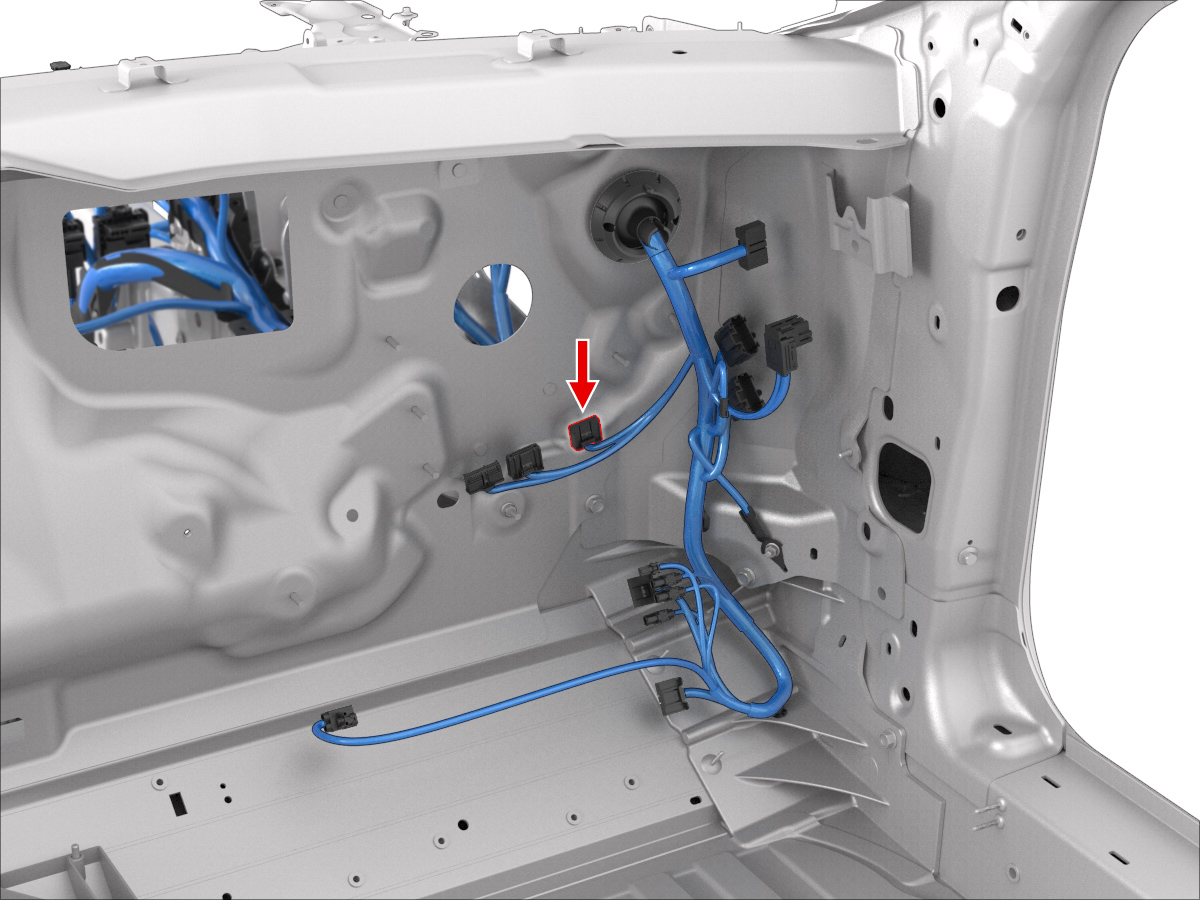

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X192	3
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X192	4
3	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X193	2
4	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X971M	21
5	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X971M	22
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X192	1
7	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X192	2
8	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X193	1
9	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X193	3
10	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X193	4
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X971M	7
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X971M	8
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X971M	5
14	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X971M	6
15	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X971M	20
16	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X971M	19
