X244 - s-lhd-sop12

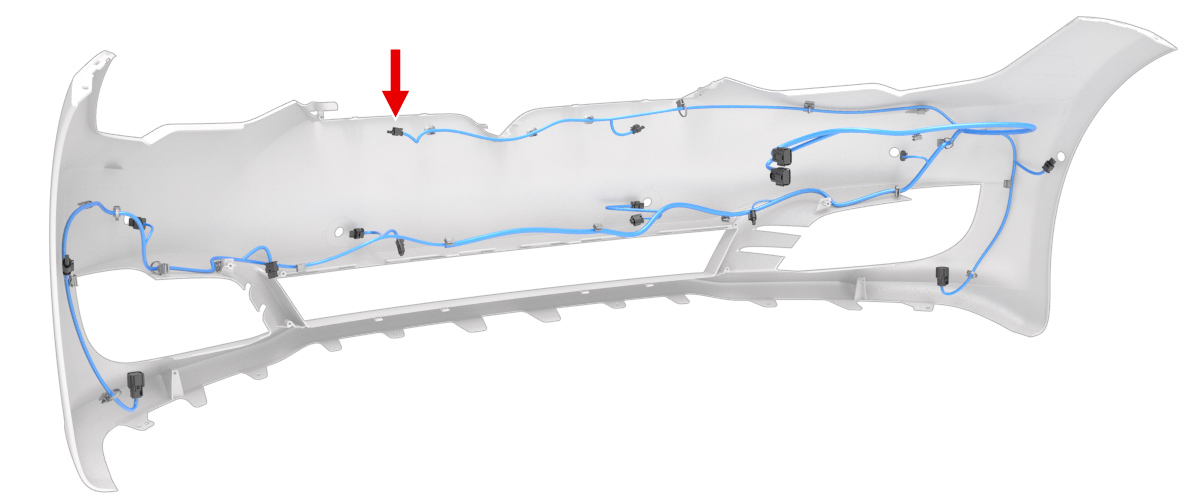

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | RD/BU | 0.35 | AMP | 967067-2 | X963F | 9 |
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | BK/VT | 0.35 | AMP | 967067-2 | X963F | 10 |
