X253 - s-lhd-sop12

Tesla Part Number
1021445-00-A
Connector
AMP 444046-4
Color
BK

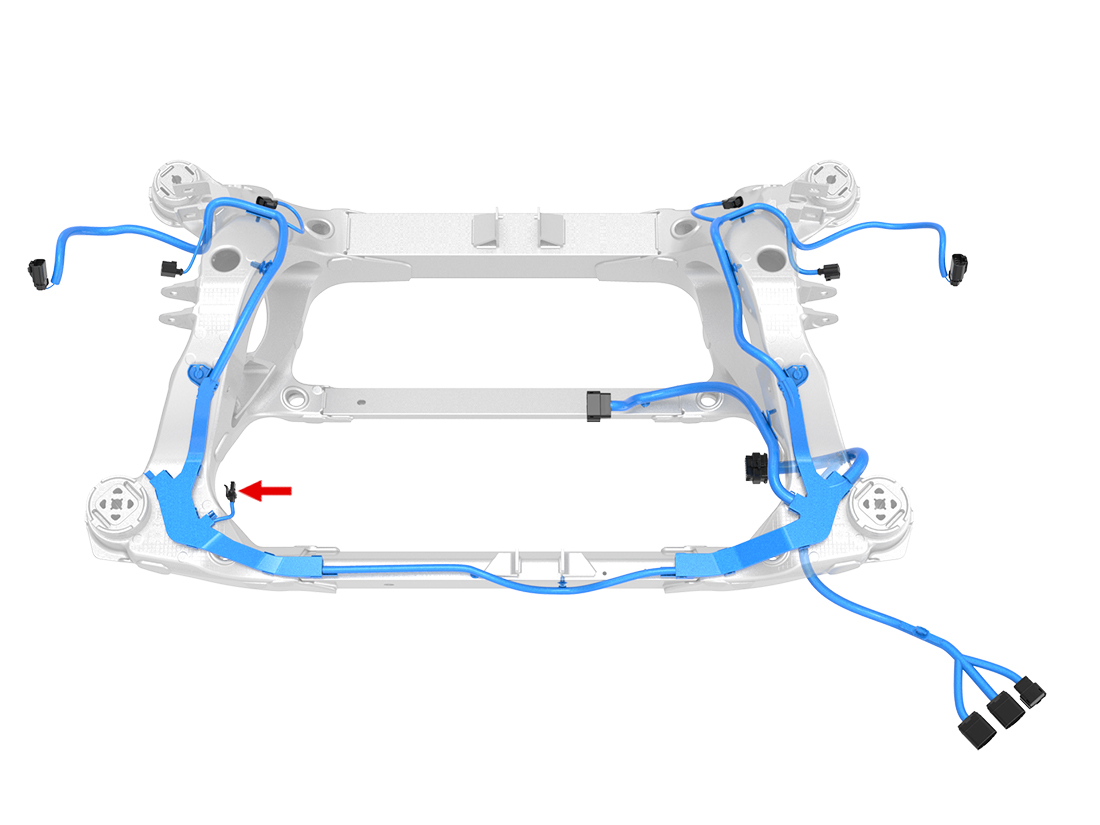

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP282438-11.5x0.8FBK0.75AMP963530-1X25017
2AMP282438-11.5x0.8FGN0.75AMP963530-1X25016
3AMP282438-11.5x0.8FRD/GY0.75AMP963530-1X25010
4AMP282438-11.5x0.8FRD/VT0.75AMP963530-1X2509
