X333 - s-lhd-sop12

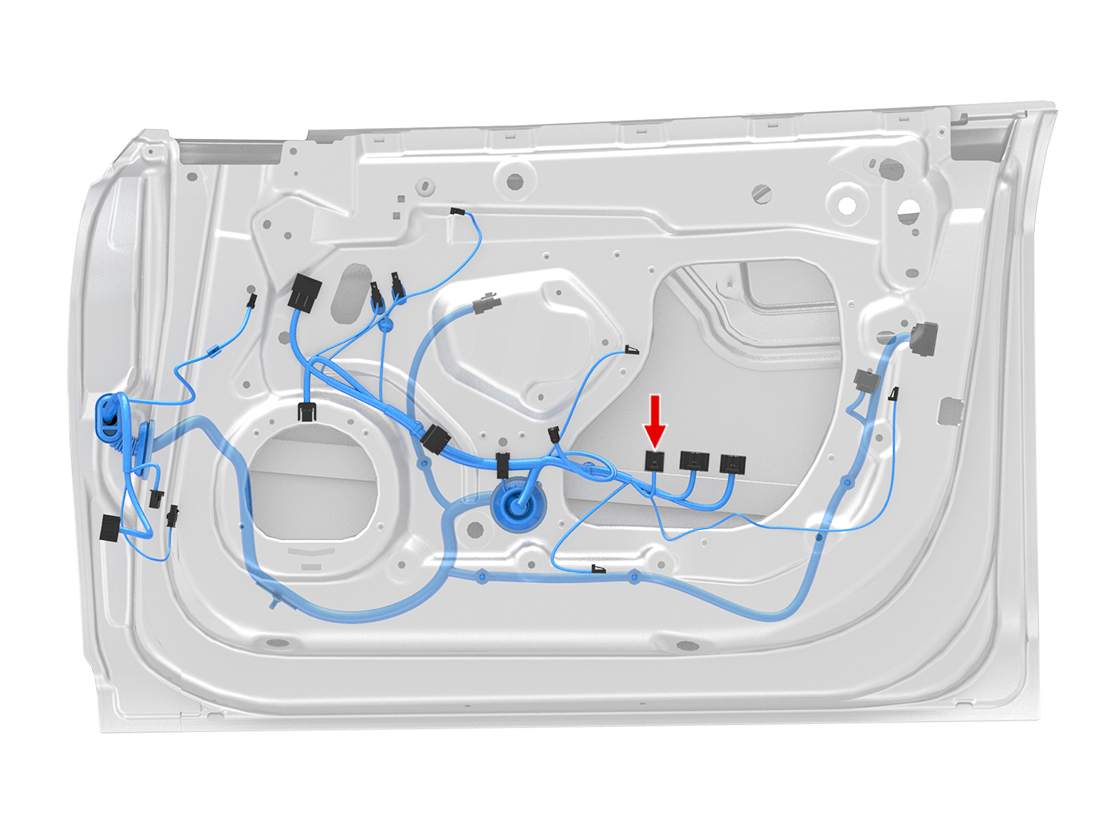

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3003 | 1.5x0.8F | YE/WH | 0.35 | X944F | 3 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | AMP | 1326030-2 | 2.8x0.8F | RD | 0.50 | ||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | AMP | 1326030-2 | 2.8x0.8F | BK | 0.50 | ||||
