X339 - s-lhd-sop12

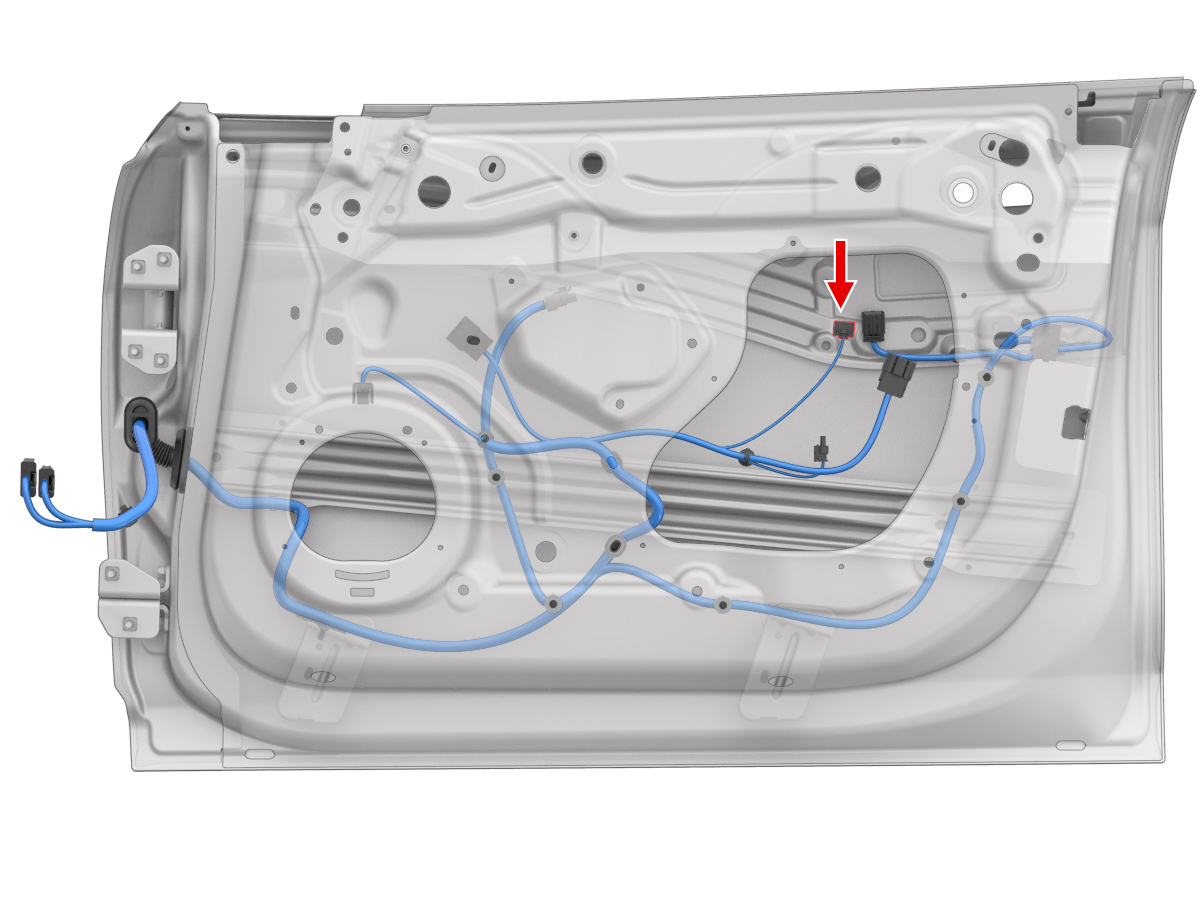

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 560023-0448 | 0.50x0.4F | GY | 0.35 | X340A | 1 | ||
| 2 | MOLEX | 560023-0448 | 0.50x0.4F | BN | 0.35 | X340A | 2 | ||
| 3 | MOLEX | 560023-0448 | 0.50x0.4F | WH | 0.35 | ||||
| 4 | MOLEX | 560023-0448 | 0.50x0.4F | WH/BU | 0.35 | X331 | 18 | ||
| 5 | MOLEX | 560023-0448 | 0.50x0.4F | BK/WH | 0.35 | X340A | 6 | ||
| 6 | MOLEX | 560023-0448 | 0.50x0.4F | RD/WH | 0.35 | X340A | 5 | ||
| 7 | MOLEX | 560023-0448 | 0.50x0.4F | OG | 0.35 | X340A | 4 | ||
| 8 | MOLEX | 560023-0448 | 0.50x0.4F | GN | 0.35 | X340A | 3 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | MOLEX | 560023-0448 | 0.50x0.4F | RD | 0.35 | ||||
| 12 | MOLEX | 560023-0448 | 0.50x0.4F | BK | 0.35 | ||||
