X359 - s-lhd-sop12

Tesla Part Number

1068592-00-A

Connector

MOLEX 34824-5124

Color

BK

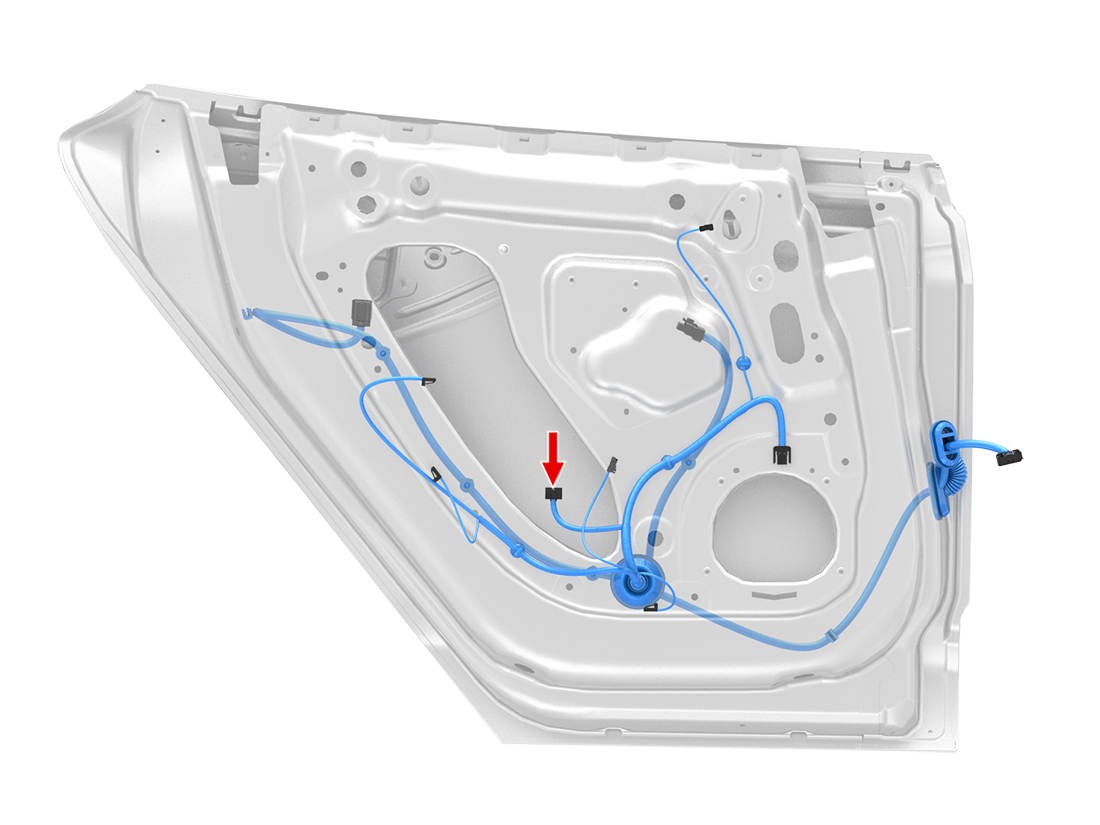

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	560023-0421	0.50x0.4F	GY	0.35			X360A	1
2	MOLEX	560023-0421	0.50x0.4F	BN	0.35			X360A	2
3	MOLEX	560023-0421	0.50x0.4F	WH	0.35
4	MOLEX	560023-0421	0.50x0.4F	RD/BU	0.35			X945F	7
5	MOLEX	560023-0421	0.50x0.4F	BK/WH	0.35			X360A	6
6	MOLEX	560023-0421	0.50x0.4F	RD/WH	0.35			X360A	5
7	MOLEX	560023-0421	0.50x0.4F	OG	0.35			X360A	4
8	MOLEX	560023-0421	0.50x0.4F	GN	0.35			X360A	3
9	MOLEX	560023-0421	0.50x0.4F	BK	0.35
10
11	MOLEX	560023-0421	0.50x0.4F	BU	0.35			X945F	2
12	MOLEX	560023-0421	0.50x0.4F	BK	0.35
