X391 - s-lhd-sop12

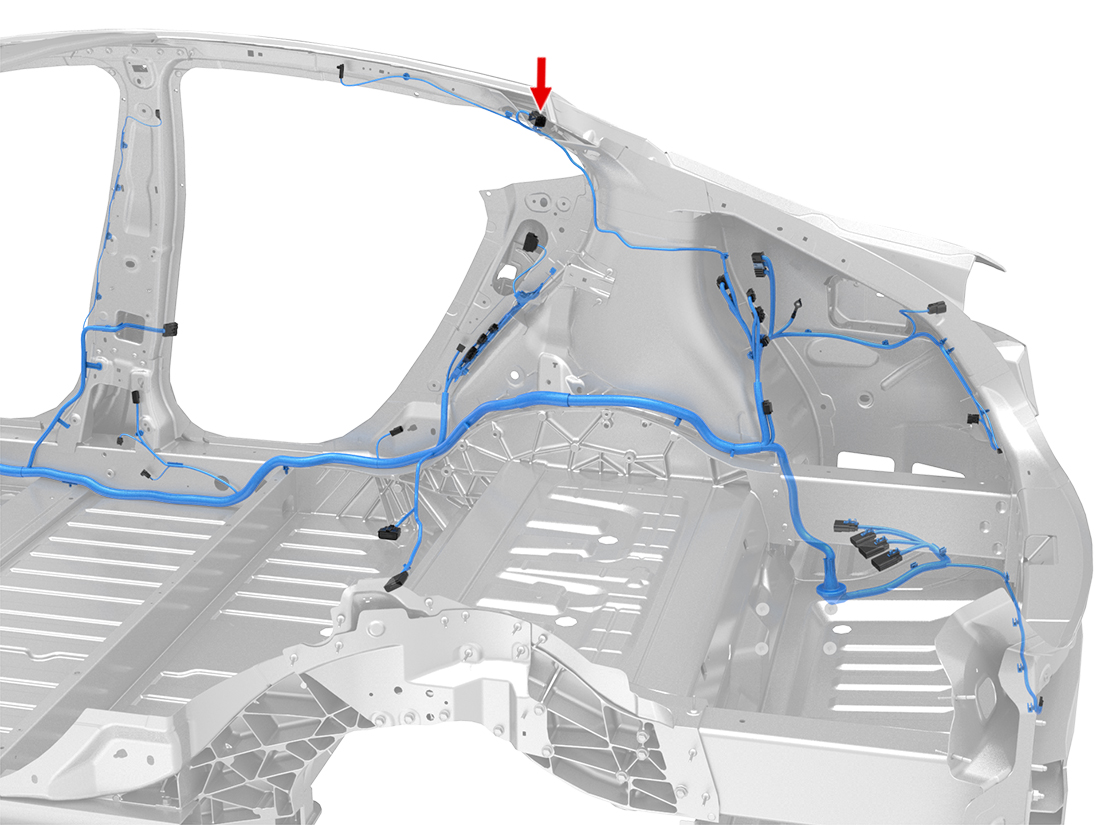

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7114-4112-02 | 2.8x0.8M | RD/WH | 2.00 | X397 | 9 | ||
| 2 | YAZAKI | 7114-4100-02 | 1.5x0.8M | RD | 0.50 | X397 | 4 | ||
| 3 | YAZAKI | 7114-4100-02 | 1.5x0.8M | RD/VT | 0.50 | X397 | 2 | ||
| 4 | YAZAKI | 7114-4112-02 | 2.8x0.8M | BK/WH | 2.00 | X397 | 10 | ||
| 5 | YAZAKI | 7114-4100-02 | 1.5x0.8M | RD/GN | 0.50 | X393 | 7 | ||
| 6 | YAZAKI | 7114-4100-02 | 1.5x0.8M | RD/BU | 0.50 | X393 | 8 | ||
| 7 | |||||||||
| 8 | |||||||||
