X408A - s-lhd-sop12

Tesla Part Number

1042473-01-A

Connector

SUMITOMO 6098-3811

Color

BK

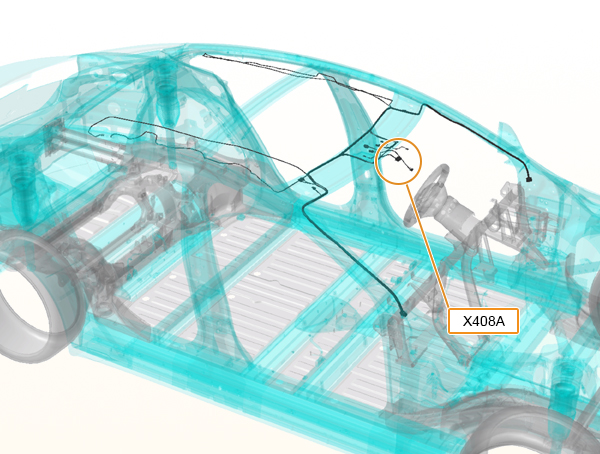

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	RD/BU	0.35			X968F	7
2	SUMITOMO	8100-3625	0.64x0.64F	RD/GY	0.35			X968F	8
3	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X967F	7
4	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X967F	8
5	SUMITOMO	8100-3625	0.64x0.64F	BK/WH	0.35			X967F	9
