X437A - s-lhd-sop12

Tesla Part Number

1042620-02-A

Connector

SUMITOMO 6098-5620

Color

BU

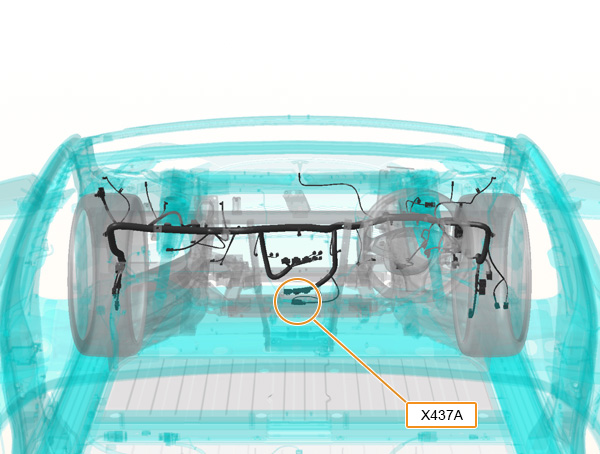

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50
2	SUMITOMO	8100-3623	0.64x0.64M	VT/WH	0.35			X772	6
3	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X772	17
4
5
6	SUMITOMO	8100-3623	0.64x0.64M	OG/BK	0.50
7
8
9	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35			X773	20
10	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X773	9
11
12
13	SUMITOMO	8100-3623	0.64x0.64M	GN/WH	0.35			X772	1
14	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X772	12
15
16
17
18	SUMITOMO	8100-3623	0.64x0.64M	RD/WH	0.35			X772	8
19	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X772	19
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50
