X917F - s-lhd-sop12

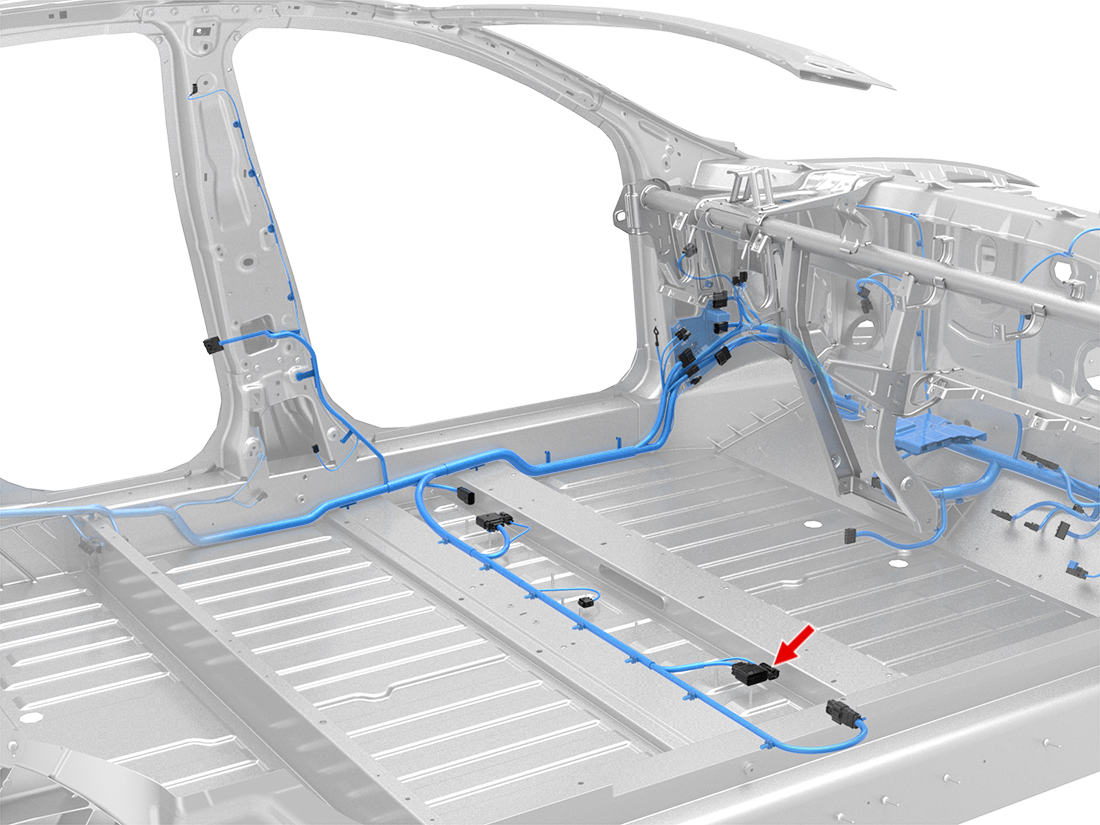

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BK/VT | 0.35 | TESLA | MAT-120-240 | X201 | 13 | |||
| 2 | BK/WH | 0.35 | TESLA | MAT-120-240 | X201 | 14 | |||
| 3 | BK | 0.35 | TESLA | MAT-120-240 | G660 | 1 | |||
| 4 | |||||||||
