X922F - s-lhd-sop12

Tesla Part Number

1042614-00-A

Connector

SUMITOMO 6098-5604

Color

WH

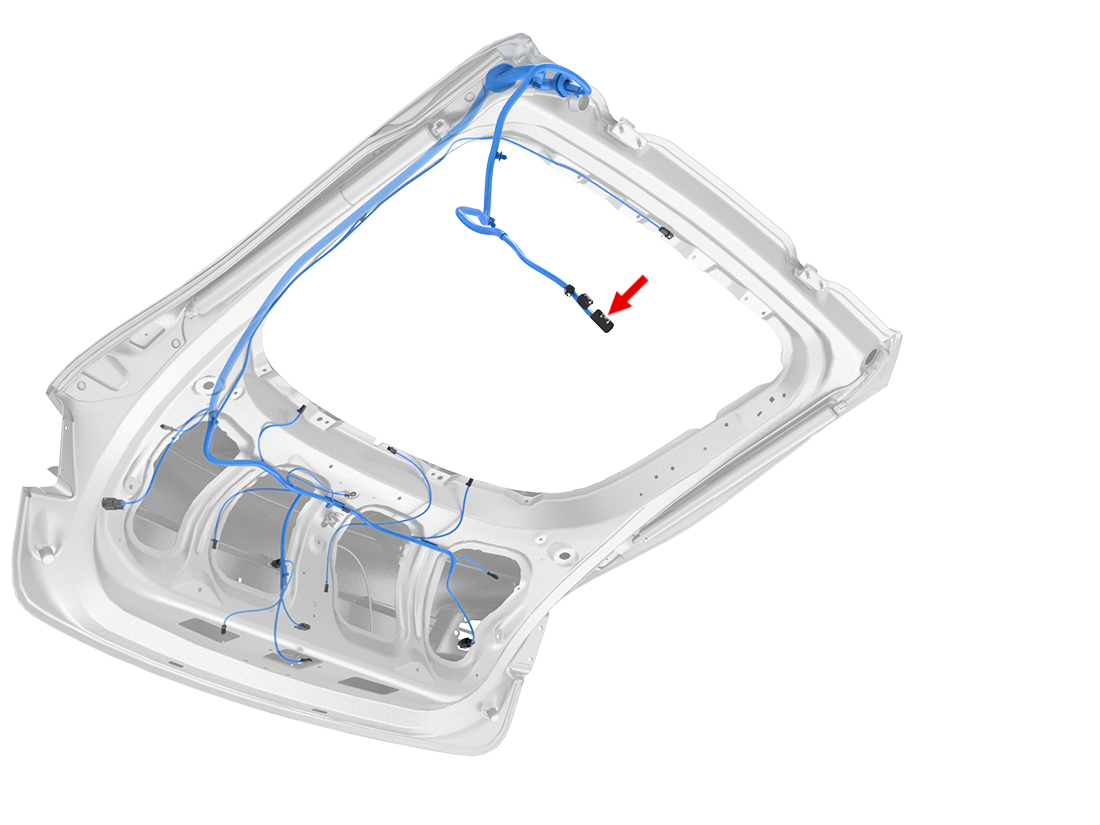

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X420	1
2	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X420	2
3	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X389	1
4	SUMITOMO	8100-3625	0.64x0.64F	WH/BK	0.35
5	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X396	1
6	SUMITOMO	8100-3625	0.64x0.64F	OG/BK	0.35			X394	3
7
8	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X398	1
9
10
11	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X421	1
12	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X421	2
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X390	1
14	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X396	2
15	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X394	1
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X398	2
17
18
