X922M - s-lhd-sop12

Tesla Part Number

1042613-00-A

Connector

SUMITOMO 6098-5594

Color

WH

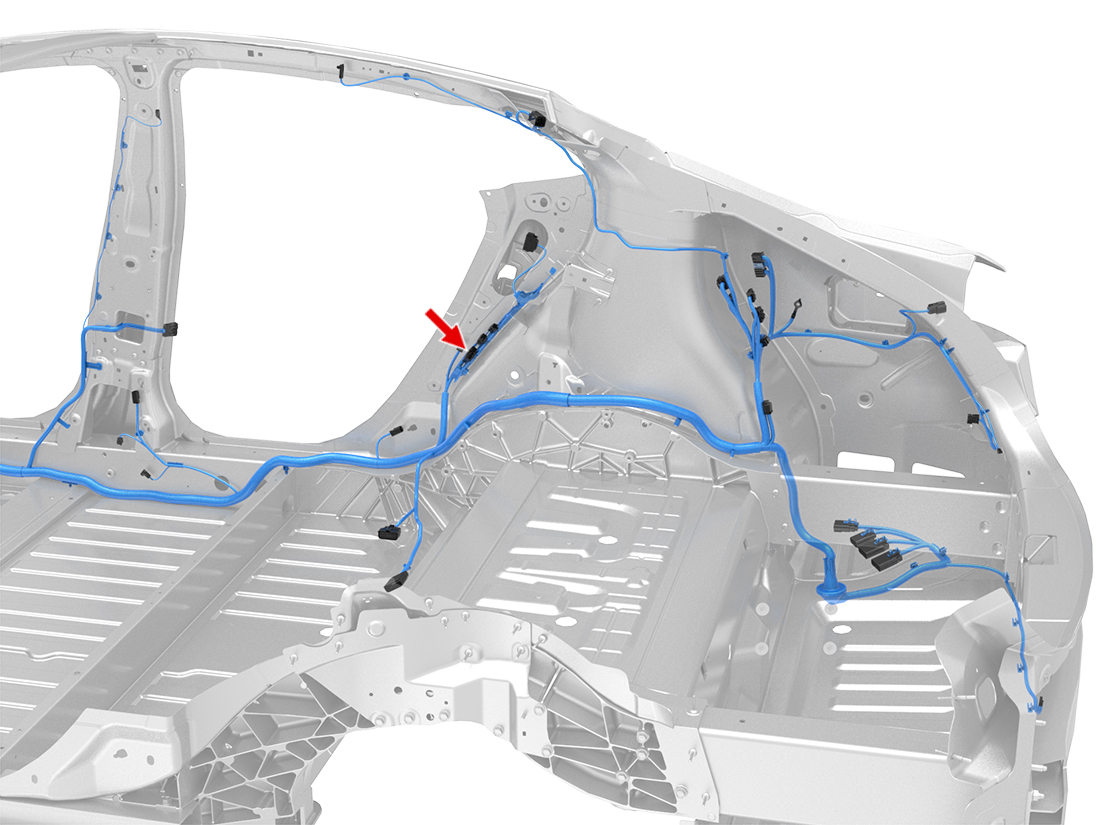

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4924	1.5x0.6M	BU	0.75			X970M	6
2	SUMITOMO	8230-4924	1.5x0.6M	VT	0.75			X970M	11
3	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.35			X393	17
4	SUMITOMO	8100-3623	0.64x0.64M	WH/BK	0.35			X397	1
5	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X397	5
6	SUMITOMO	8100-3623	0.64x0.64M	OG/BK	0.35			X393	2
7
8	SUMITOMO	8100-3623	0.64x0.64M	VT/WH	0.35			X393	1
9
10
11	SUMITOMO	8230-4924	1.5x0.6M	GN	0.75			X970M	7
12	SUMITOMO	8230-4924	1.5x0.6M	BK	0.75			X970M	12
13	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X393	18
14	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35			X397	6
15	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X393	6
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X393	11
17
18
