X928F - s-lhd-sop12

Tesla Part Number

1042578-00-A

Connector

SUMITOMO 6098-3909

Color

WH

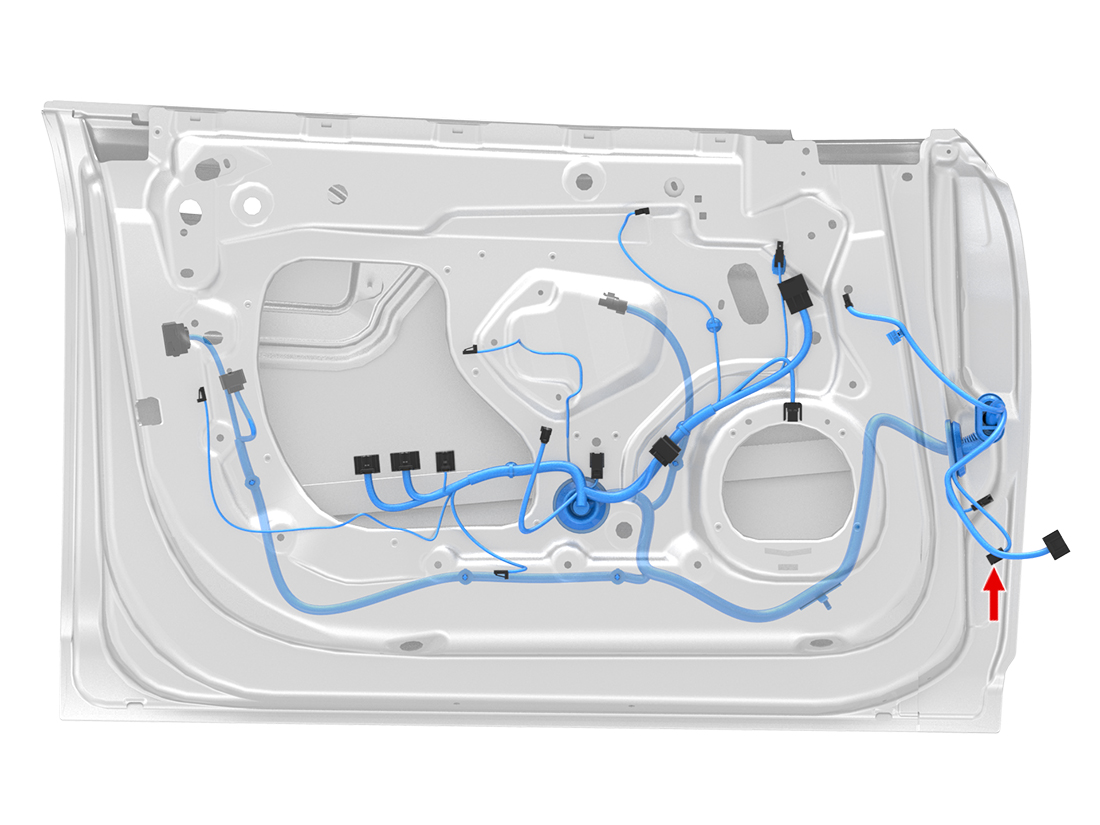

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X301	16
2	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X301	15
3	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X302	2
4	SUMITOMO	8100-3625	0.64x0.64F	BK/GY	0.35			X301	22
5
6	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35
7	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X302	23
8	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35
9	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X301	3
