X929M - s-lhd-sop12

Tesla Part Number

1042577-00-A

Connector

SUMITOMO 6098-3869

Color

WH

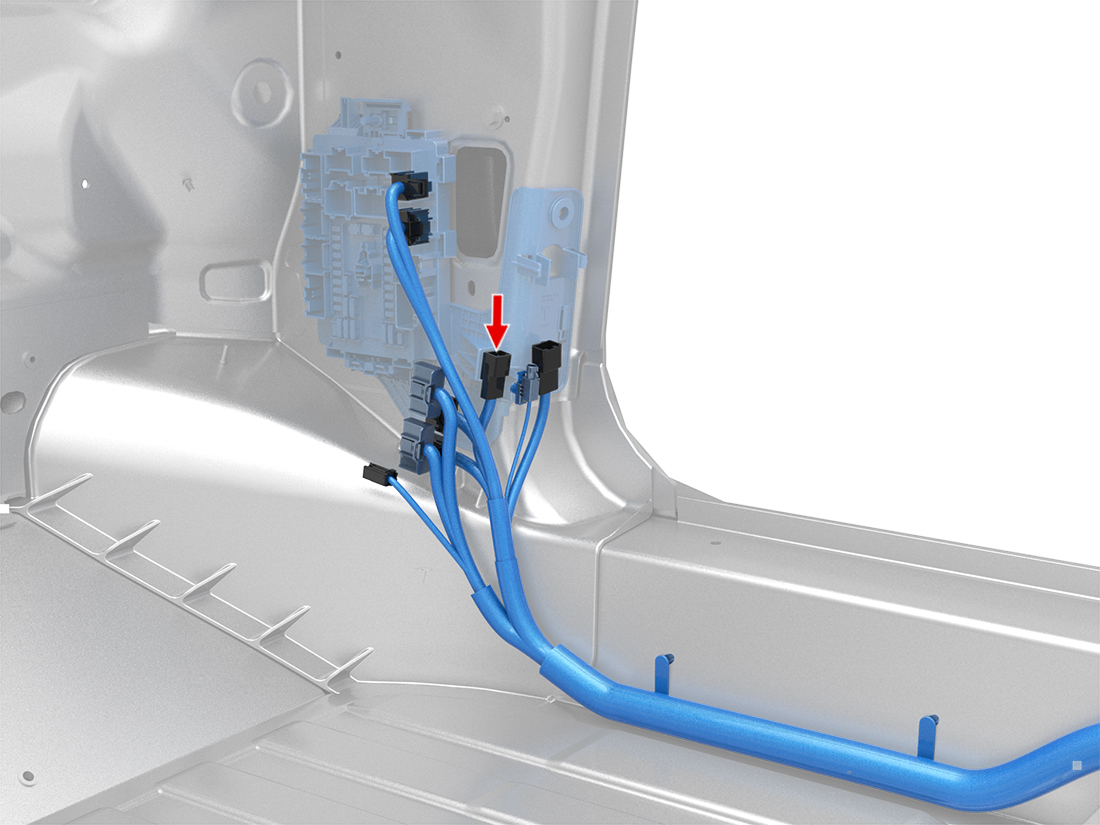

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X946M	8
2	SUMITOMO	8100-3623	0.64x0.64M	BN/WH	0.35			X946M	7
3	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X372	8
4	SUMITOMO	8100-3623	0.64x0.64M	BK/GY	0.35			X372	9
5
6	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X946M	9
7	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.35			X372	2
8	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X946M	16
9	SUMITOMO	8100-3623	0.64x0.64M	GN/WH	0.35			X946M	12
10
