X930F - s-lhd-sop12

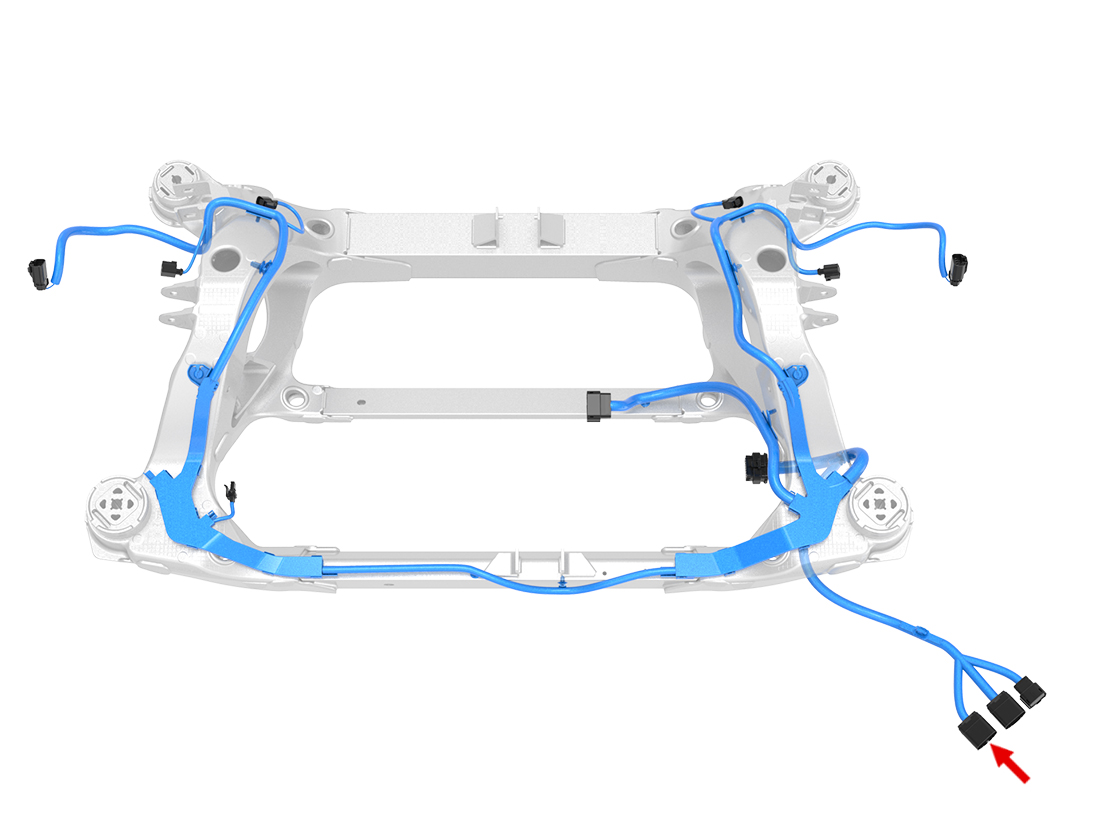

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 54001400 | 2.8x0.8F | GY | 2.00 | TESLA | MAT-170-409 | X103 | 4 |
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | FCI | 54001400 | 2.8x0.8F | RD/WH | 2.00 | TESLA | MAT-170-409 | X104 | 4 |
| 8 | FCI | 54001400 | 2.8x0.8F | BK/WH | 2.00 | TESLA | MAT-170-409 | X103 | 1 |
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | FCI | 54001400 | 2.8x0.8F | RD/VT | 2.00 | TESLA | MAT-170-409 | X104 | 1 |
