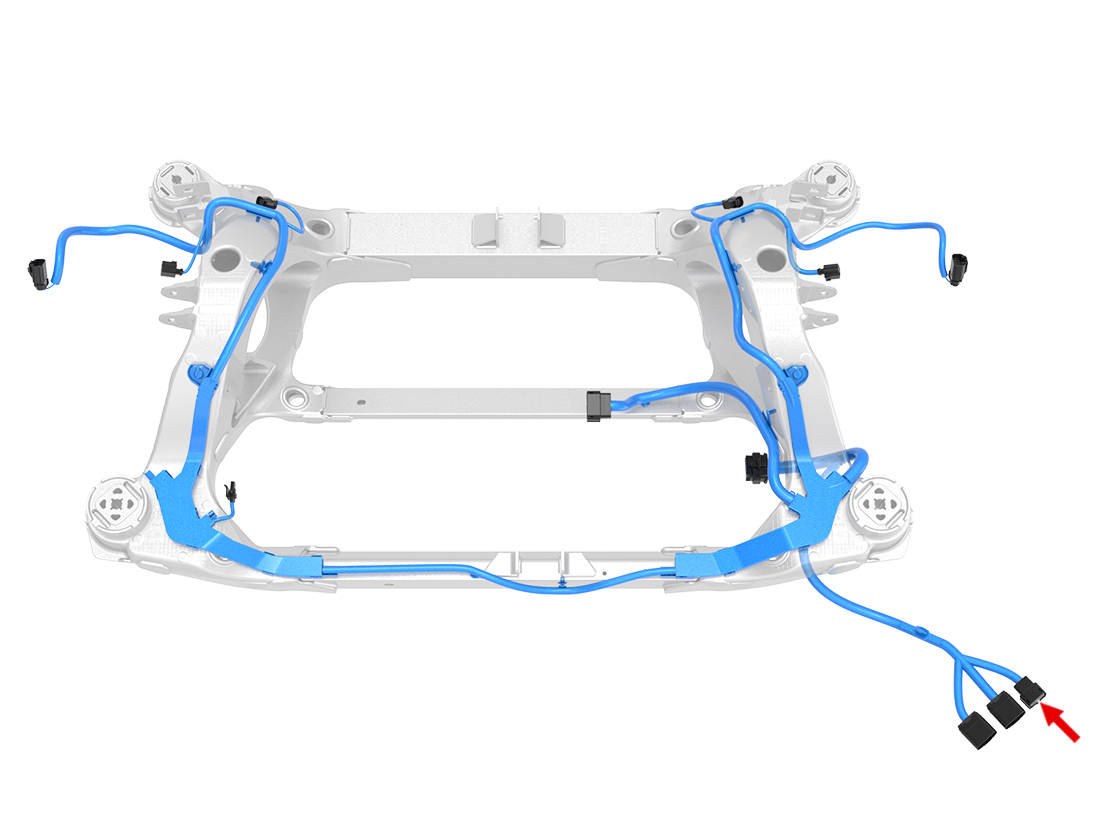

X932F - s-lhd-sop12

Tesla Part Number

1034184-00-A

Connector

MOLEX 33472-2002

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3002	1.5x0.8F	RD/WH	0.75	TESLA	MAT-120-240	X250	4
2	MOLEX	33012-3003	1.5x0.8F	RD/GN	0.35	TESLA	MAT-120-240	X184	3
3	MOLEX	33012-3003	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X184	2
4	MOLEX	33012-3003	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X184	1
5				BK	0.50			X194A	1
6				WH	0.50			X194A	2
7				BU	0.50			X194B	1
8				YE	0.50			X194B	2
9	MOLEX	33012-3003	1.5x0.8F	GN/WH	0.50	TESLA	MAT-120-240	X113	1
10	MOLEX	33012-3003	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X113	2
11	MOLEX	33012-3002	1.5x0.8F	RD	0.75	TESLA	MAT-120-240	X250	5
12	MOLEX	33012-3003	1.5x0.8F	RD/VT	0.35	TESLA	MAT-120-240	X185	3
13	MOLEX	33012-3003	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X185	2
14	MOLEX	33012-3003	1.5x0.8F	GY/WH	0.35	TESLA	MAT-120-240	X185	1
15				BK	0.50			X195A	1
16				WH	0.50			X195A	2
17				BU	0.50			X195B	1
18				RD	0.50			X195B	2
19	MOLEX	33012-3003	1.5x0.8F	BK/WH	0.50	TESLA	MAT-120-240	X114	1
20	MOLEX	33012-3003	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X114	2
