X943F - s-lhd-sop12

Tesla Part Number

1042614-03-A

Connector

SUMITOMO 6098-5609

Color

GY

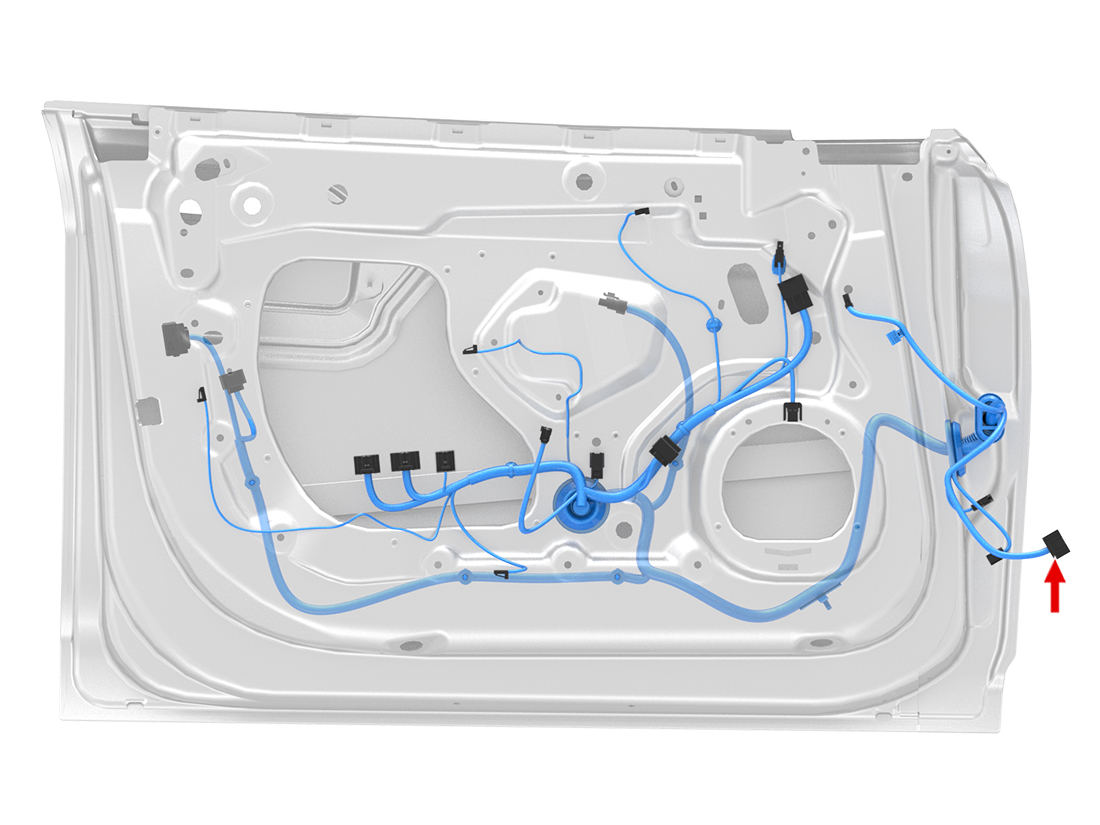

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X315	3
2	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50
3	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X303	1
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35
5	SUMITOMO	8100-3625	0.64x0.64F	OG/BK	0.35			X204	1
6	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X302	16
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X301	2
8	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X316	6
9	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X301	14
10	SUMITOMO	8240-0214	1.5x0.64F	BU/WH	1.50			X418	1
11	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00
12
13	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X302	22
14	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X204	2
15	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X302	15
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X316	16
17	SUMITOMO	8240-0215	1.5x0.64F	OG	0.35
18	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X418	2
