X971F - s-lhd-sop12

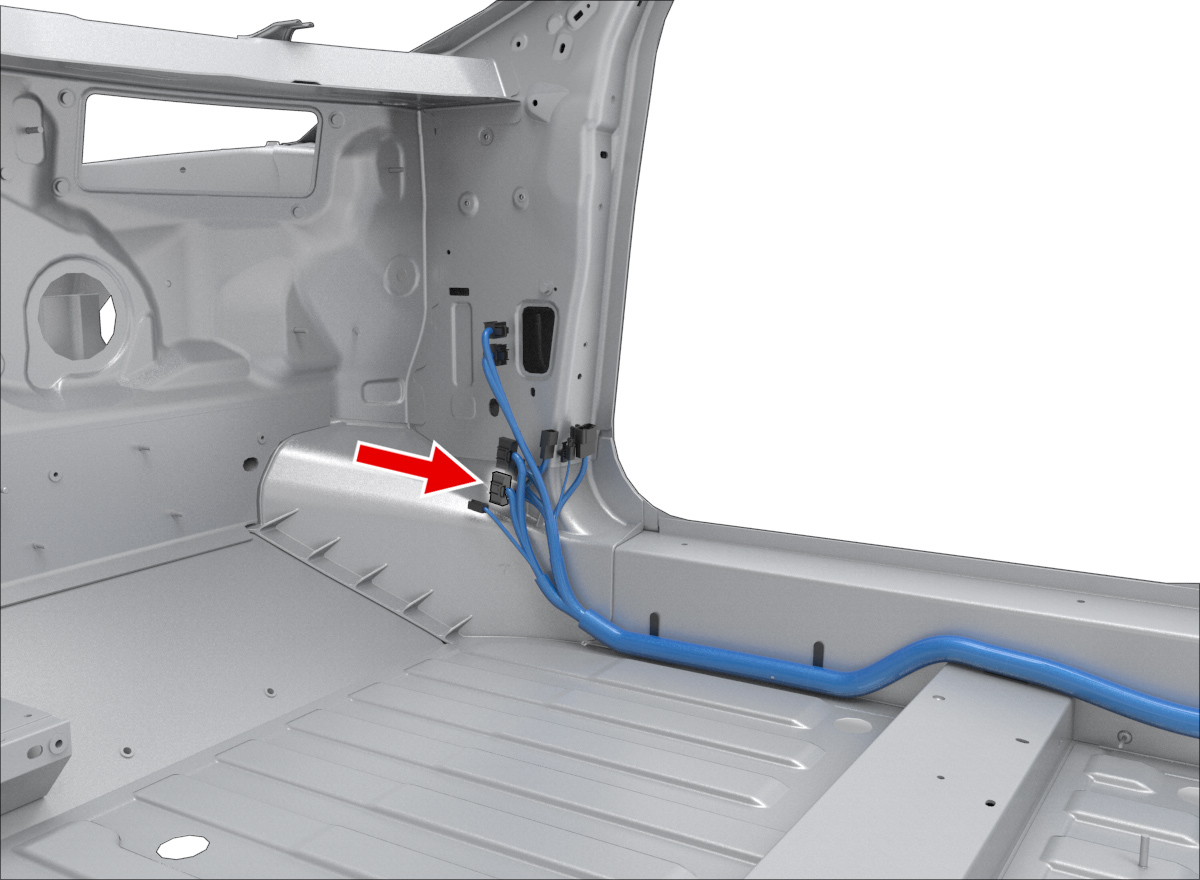

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD/GY | 2.00 | X101 | 8 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/GN | 0.35 | X932M | 2 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X932M | 3 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.35 | X932M | 4 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X932M | 5 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X932M | 6 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X932M | 7 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X932M | 8 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.50 | X932M | 9 | ||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.50 | X932M | 10 | ||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK/WH | 0.50 | X932M | 19 | ||
| 14 | |||||||||
| 15 | SUMITOMO | 8240-0213 | 1.5x0.64F | YE | 1.0 | X930M | 2 | ||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/VT | 0.35 | X932M | 12 | ||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X932M | 13 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY/WH | 0.35 | X932M | 14 | ||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT/WH | 0.35 | X932M | 15 | ||
| 20 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN/WH | 0.35 | X932M | 16 | ||
| 21 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.35 | X932M | 17 | ||
| 22 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU/WH | 0.35 | X932M | 18 | ||
| 23 | |||||||||
| 24 | |||||||||
| 25 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.50 | X932M | 20 | ||
| 26 | |||||||||
